182-037-213R161 - NorComp

Description: D-Sub Standard !! Connectors 37P Female R/A inside ground straps

Download 182-037-213R161 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
182-037-213R161 - NorComp - PCB symbol
click to zoom
PCB Footprints

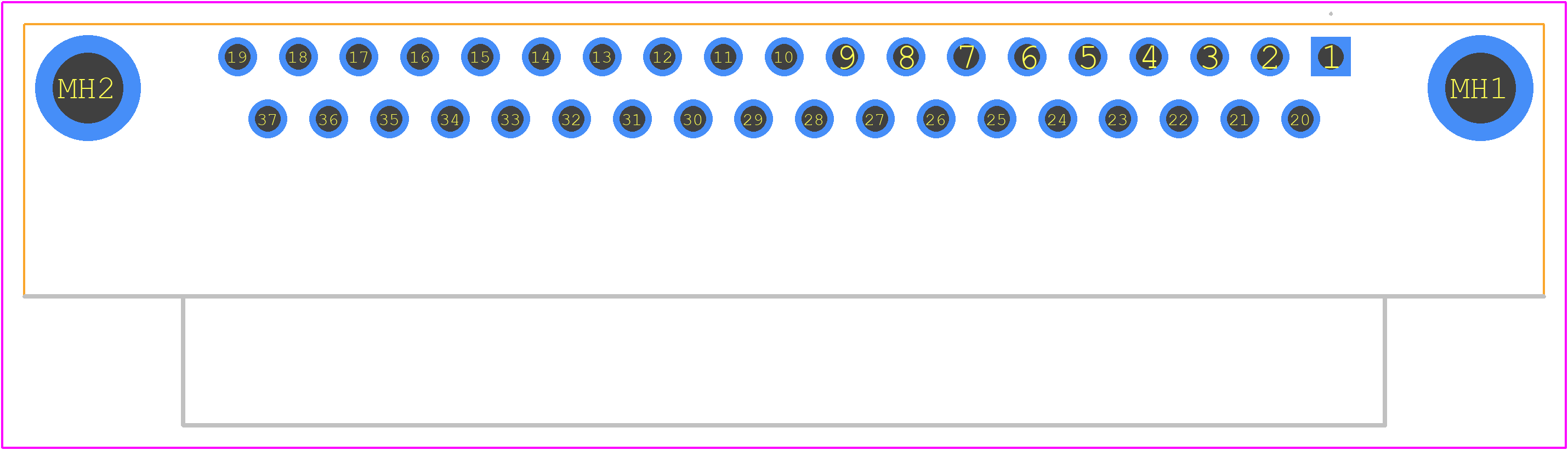

182-037-213R161 - NorComp PCB footprint - Other - Other - 182-037-213R161-1
click to zoom

182-037-213R161 Details

  • Manufacturer Part Number:

    182-037-213R161

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.5

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

182-037-213R161 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 182-037-213R161 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • The 182-037-213R161 has a rating of IP67 (IEC 60529), which means it is protected against dust and water immersion up to 1m for 30 minutes, making it suitable for outdoor use.
  • The operating temperature range for the 182-037-213R161 is -40°C to +125°C, making it suitable for use in a wide range of applications.
  • While the datasheet specifies AWG 24-18 wire sizes, the connector can accommodate other wire sizes with the use of adapters or by consulting with NorComp's technical support team.
