1820630000 - Weidmüller

Description: PCB connector (board connection), 320 V, 27.5 A, Pitch in mm: 5.08, Number of poles: 12, THT/THR solder connection, Box

Download 1820630000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1820630000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

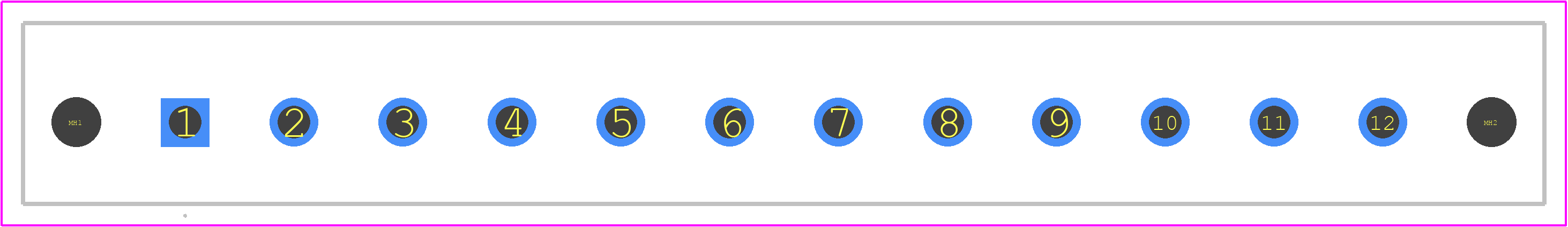

1820630000 - Weidmüller PCB footprint - Other - Other - 1820630000
click to zoom
3D Models
1820630000 - Weidmüller - 3D model - Other - 1820630000
click to zoom

1820630000 Details

  • Manufacturer Part Number:

    1820630000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Connector Type:

    RECTANGULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

1820630000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1820630000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1820630000 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373 Cat. 2 standards, ensuring reliable connections in harsh environments.
  • The 1820630000 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes, making it suitable for use in humid or wet environments.
  • The 1820630000 connector has a mating cycle rating of 500 cycles, ensuring reliable connections even in applications where frequent mating and unmating is required.
  • Yes, the 1820630000 connector is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1820630000 Overview

Use the download button to access the 1820630000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18206, or try a keyword search, such as Other Rectangular Connectors
