Description:PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 5, PUSH IN with push button, THT/THR solder connection, 90°, Tube
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
Yes, the 1824450000 is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to perform additional testing to ensure the connector meets the specific vibration requirements of your application.
The 1824450000 has a protection rating of IP67, making it suitable for outdoor use. However, it's essential to ensure the connector is properly sealed and protected from environmental factors such as UV radiation, moisture, and extreme temperatures.
While it's technically possible to use a different wire gauge, it's not recommended. Using a wire gauge outside the recommended range may compromise the connector's performance, reliability, and safety. It's essential to follow the recommended wire gauge to ensure optimal performance and prevent damage to the connector or connected devices.
The 1824450000 is designed to work with a variety of wire insulation materials, including PVC, Teflon, and silicone. However, it's recommended to verify the compatibility of the connector with your specific wire insulation material to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1824450000 Overview

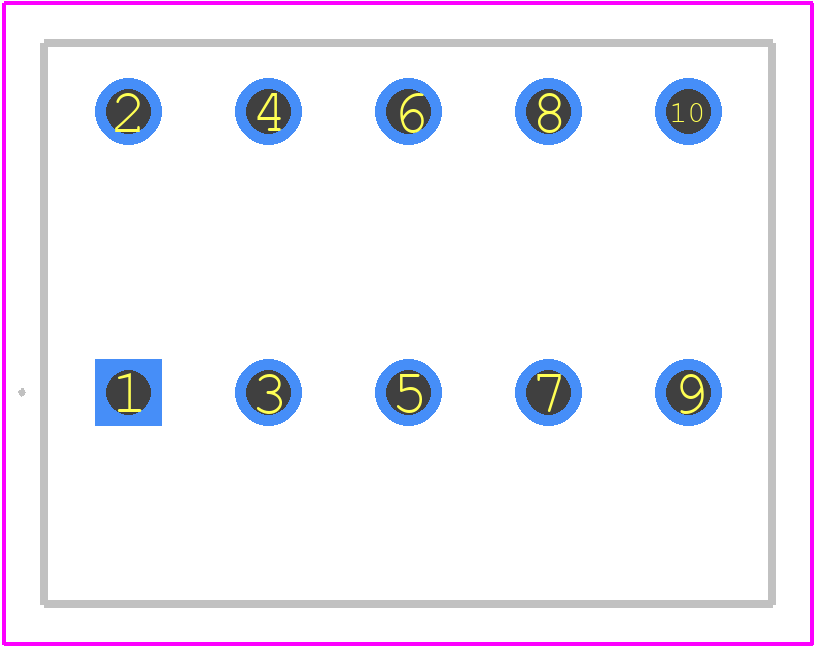

Use the download button to access the 1824450000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18244,
or try a keyword search, such as Terminals and Terminal Blocks
