1824460000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 6, PUSH IN with push button, THT/THR solder connection, 90°, Tube

Download 1824460000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1824460000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

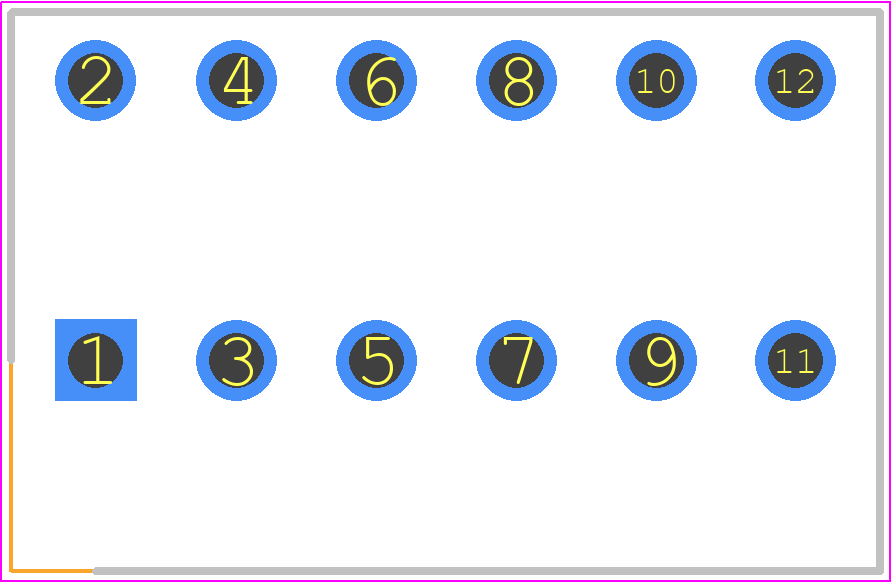

1824460000 - Weidmüller PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 1824460000
click to zoom
3D Models
1824460000 - Weidmüller - 3D model - Header, Shrouded - Straight PTH Box - 1824460000
click to zoom

1824460000 Details

  • Manufacturer Part Number:

    1824460000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.35

  • Additional Feature:

    GLASS FILLED LCP, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1824460000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1824460000 is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1824460000 is designed for outdoor use and is IP67 rated, providing protection against dust and water ingress.
  • The 1824460000 has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 1824460000 is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 1, Class B.
  • Yes, the 1824460000 is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1824460000 Overview

Use the download button to access the 1824460000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18244, or try a keyword search, such as Terminals and Terminal Blocks

Parts related to 1824460000
