1824840000 - Weidmüller

Description: PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.08, 1.5 mm², Number of poles: 5, PUSH IN with push button, THT/THR solder connection, 90°, Tube

Download 1824840000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1824840000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

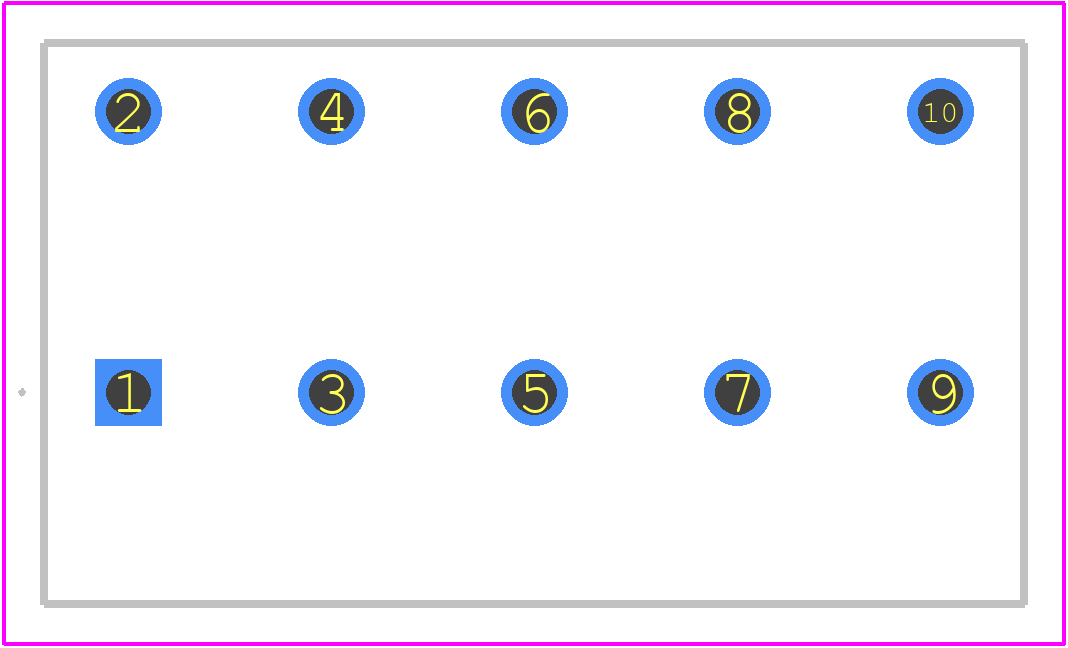

1824840000 - Weidmüller PCB footprint - Other - Other - 1824840000
click to zoom
3D Models
1824840000 - Weidmüller - 3D model - Other - 1824840000
click to zoom

1824840000 Details

  • Manufacturer Part Number:

    1824840000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    GLASS FILLED LCP, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1824840000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1824840000 connector is -40°C to 125°C, as specified by the manufacturer.
  • Yes, the 1824840000 connector is designed for outdoor use and can withstand environmental factors such as moisture, dust, and extreme temperatures.
  • The 1824840000 connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 1824840000 connector is designed to withstand high-vibration environments and can operate reliably in applications with intense mechanical stress.
  • Yes, the 1824840000 connector is designed to be compatible with other Weidmüller products, including their range of connectors, terminals, and interfaces.
