1825002-9 - TE Connectivity

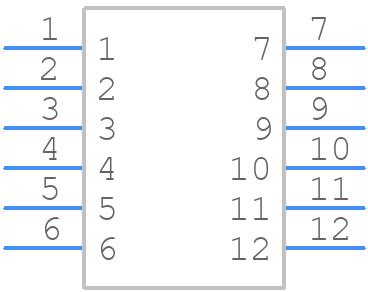

1825002-9 Details

• Manufacturer Part Number:

  1825002-9

• Brand Name:

  Alcoswitch

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Factory Lead Time:

  32 Weeks, 2 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  8.6

• Actuator Color:

  WHITE

• Actuator Material:

  POLYAMIDE

• Actuator Type:

  SLIDE TYPE

• Body Breadth:

  7.49 mm

• Body Color:

  BLACK

• Body Height:

  4 mm

• Body Length or Diameter:

  17.22 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact (AC) Max Rating R Load:

  A@VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  .1A@24VDC

• Contact Function:

  ON-OFF

• Contact Resistance:

  0.3 mΩ

• Contact Voltage(DC)-Max:

  5 V

• Dielectric Withstand Volts:

  500VRMS V

• Electrical Life:

  1000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  POLYPHENYLENE SULPHIDE

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  POLYPHENYLENE SULPHIDE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Number of Positions:

  6

• Number of Switch Sections:

  6

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• PCB Hole Count:

  6

• Packing Method:

  TUBE

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Finish:

  Gold (Au) - with Nickel (Ni) barrier

• Terminal Length:

  0.157 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
