1825139-2 - TE Connectivity

Description: Body Features: Bushing Style Unthreaded | Actuator Finish Nickel | Product Orientation Right Angle | Bushing Thread Size 1/4-40 | Configuration Features: Configuration (Pole-Throw) Double Pole - Double Throw | Operating Function On Off On | Contact Features: Contact Base Material Copper | Switch Contact Plating Material Gold | Contact Current Rating .4 AMP | Dimensions: Toggle Length 6.86 MM | Toggle Length .27 INCH | Bushing Length .28 INCH | Electrical Characteristics: Dielectric Withstanding Voltage (Max

Download 1825139-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1825139-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

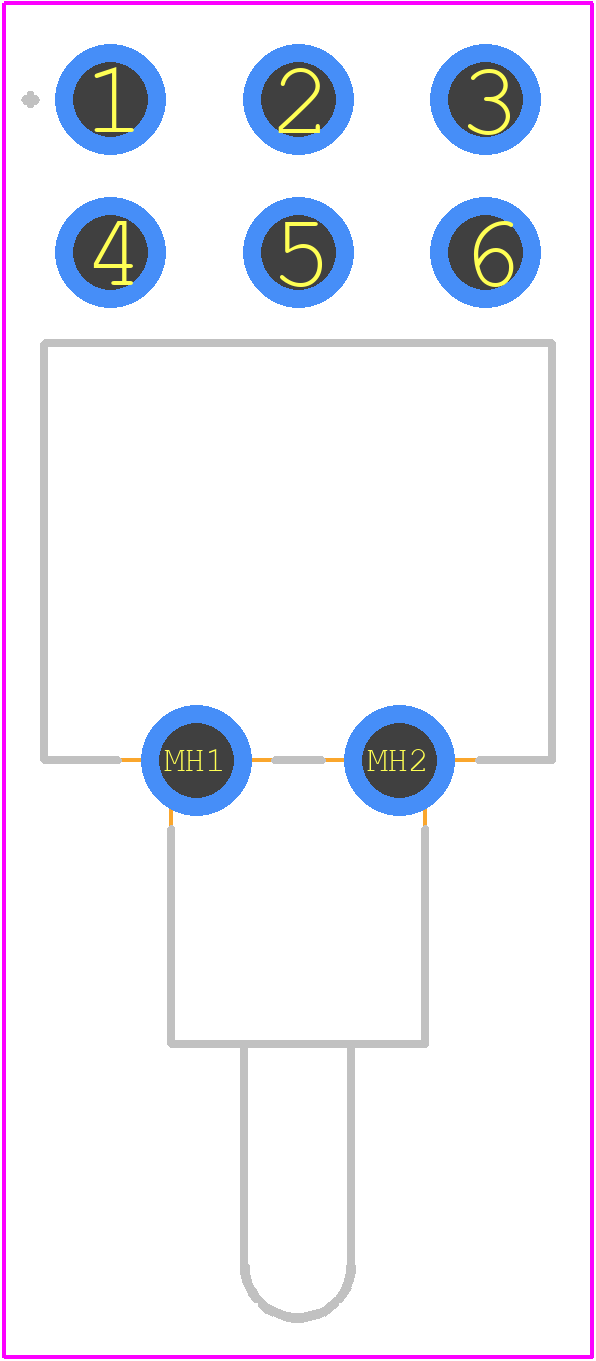

1825139-2 - TE Connectivity PCB footprint - Other - Other - 1825139-2-2
click to zoom
3D Models
1825139-2 - TE Connectivity - 3D model - Other - 1825139-2-2
click to zoom

1825139-2 Details

  • Manufacturer Part Number:

    1825139-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    14 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Actuator Finish:

    NICKEL

  • Bushing Length:

    0.28 inch

  • Center Contact Plating:

    GOLD

  • Contact Current(AC)-Max:

    0.4 A

  • Contact Current(DC)-Max:

    0.4 A

  • Contact Function:

    ON-OFF-ON

  • Contact Resistance:

    0.01 mΩ

  • Contact Voltage(AC)-Max:

    20 V

  • Contact Voltage(DC)-Max:

    20 V

  • Dielectric Withstand Volts:

    1000 V

  • End Contact Material:

    COPPER ALLOY

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Function:

    DPDT

  • Switch Type:

    TOGGLE SWITCH

  • Termination Type:

    SOLDER

1825139-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 1825139-2 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 1825139-2 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the 1825139-2 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The mating cycle life of the 1825139-2 connector is 500 cycles, ensuring reliable connections over an extended period.
