1825190-7 - TE Connectivity

Description: Body Features: Case Material High Temperature Nylon | Product Orientation Right Angle | Case Color Black | Configuration Features: Number of Switches 8 | Number of Positions 8 | Configuration (Pole-Throw) Single Pole - Single Throw | Contact Features: Contact Base Material Copper Alloy | Contact Current Rating 2 AMP | PCB Contact Termination Area Plating Material Tin | Switch Contact Plating Material Tin | Dimensions: Product Length 20.32 MM | Product Length .799 INCH | Product Height 2 MM | Product Height

Download 1825190-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1825190-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

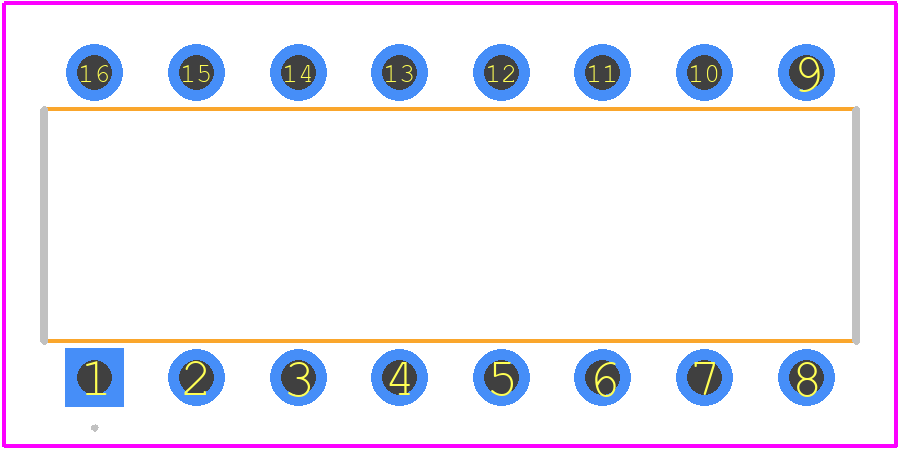

1825190-7 - TE Connectivity PCB footprint - Other - Other - 1825190-7-2
click to zoom
3D Models
1825190-7 - TE Connectivity - 3D model - Other - 1825190-7-2
click to zoom

1825190-7 Details

  • Manufacturer Part Number:

    1825190-7

  • Brand Name:

    Alcoswitch

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • Body Depth:

    0.079 inch

  • Body Length:

    0.799 inch

  • Connector Type:

    SHUNT

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Terminal Length:

    0.15 inch

  • UL Flammability Code:

    94V-0

1825190-7 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 1825190-7 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1825190-7 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, TE Connectivity provides PCB layout guidelines for the 1825190-7 connector. It's essential to follow these recommendations to ensure proper mating and to prevent damage to the connector or PCB.
  • The 1825190-7 connector is designed to operate in various environments, but it's crucial to consider the specific application and environmental conditions. Consult TE Connectivity's environmental testing data and application notes for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1825190-7 Overview

Use the download button to access the 1825190-7 schematic symbol, PCB footprint, and 3D model.
