1825200-2 - TE Connectivity

Description: Body Features: Actuator Profile Extended | Actuator Orientation Top | Actuator Travel .079 INCH | Actuator Material Nylon | Actuator Color Black | Product Orientation Vertical | Actuator Travel 2 MM | Configuration Features: Configuration (Pole-Throw) Double Pole - Four Throw | Number of Actuators Single | Number of Positions 4 | Operating Function On On On | Terminals Connected 1-3, 6-8 | Contact Features: Contact Current Rating .4 AMP | Switch Contact Plating Material Gold | Contact Base Material Copper A

Download 1825200-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1825200-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

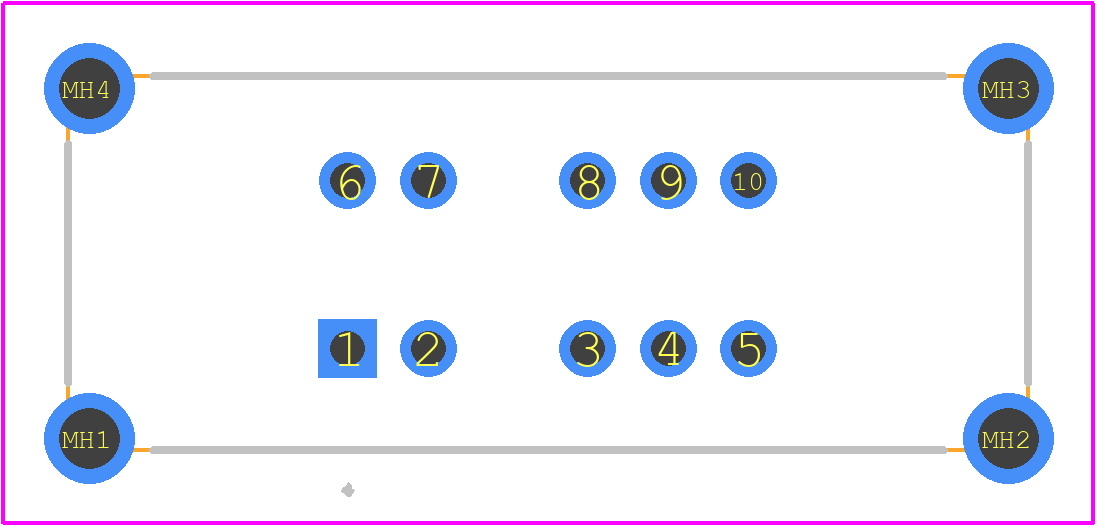

1825200-2 - TE Connectivity PCB footprint - Other - Other - 1825200-2-2
click to zoom
3D Models
1825200-2 - TE Connectivity - 3D model - Other - 1825200-2-2
click to zoom

1825200-2 Details

  • Manufacturer Part Number:

    1825200-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Factory Lead Time:

    48 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.2

  • Actuator Color:

    BLACK

  • Actuator Length:

    0.41 inch

  • Actuator Material:

    NYLON

  • Actuator Travel:

    2.0066 mm

  • Actuator Type:

    EXTENDED TOP TYPE

  • Body Breadth:

    9.35 mm

  • Body Height:

    10.16 mm

  • Body Length or Diameter:

    24 mm

  • Center Contact Plating:

    GOLD

  • Contact (AC) Max Rating R Load:

    .02A@20VAC

  • Contact Current(AC)-Max:

    0.4 A

  • Contact Current(DC)-Max:

    0.4 A

  • Contact (DC) Max Rating R Load:

    .02A@20VDC

  • Contact Function:

    ON-ON-ON

  • Contact Voltage(AC)-Max:

    20 V

  • Contact Voltage(DC)-Max:

    20 V

  • Electrical Life:

    15000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Number of Independent Keys:

    1

  • Number of Positions:

    4

  • Operating Force-Max:

    8.83 N

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TRAY

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DP4T

  • Switch Type:

    SLIDE SWITCH

  • Termination Type:

    SOLDER

1825200-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1825200-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 22-20) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's crucial to verify the wire size and termination method to ensure reliable connections.
  • The 1825200-2 connector is designed for general-purpose applications and may not be suitable for extreme environments. However, TE Connectivity offers variants with enhanced environmental sealing or specialized materials for use in harsh environments. Consult with TE Connectivity or a qualified distributor for specific recommendations.
  • Yes, to ensure reliable connections and prevent damage to the connector or PCB, follow TE Connectivity's recommended PCB layout guidelines, including maintaining a minimum clearance of 1.5 mm between the connector and adjacent components, and using a solder mask to prevent solder bridging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1825200-2 Overview

Use the download button to access the 1825200-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18252, or try a keyword search, such as Slide Switches
