1825259-2 - TE Connectivity

Description: SP3T through-hole slide switch, On-On-On function, 0.4A @ 20VDC, gold-plated copper contacts, 3.8 mm black POM actuator, UL 94HB, instrumentation grade. , 20 V , -20°C ~ 85°C

Download 1825259-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1825259-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

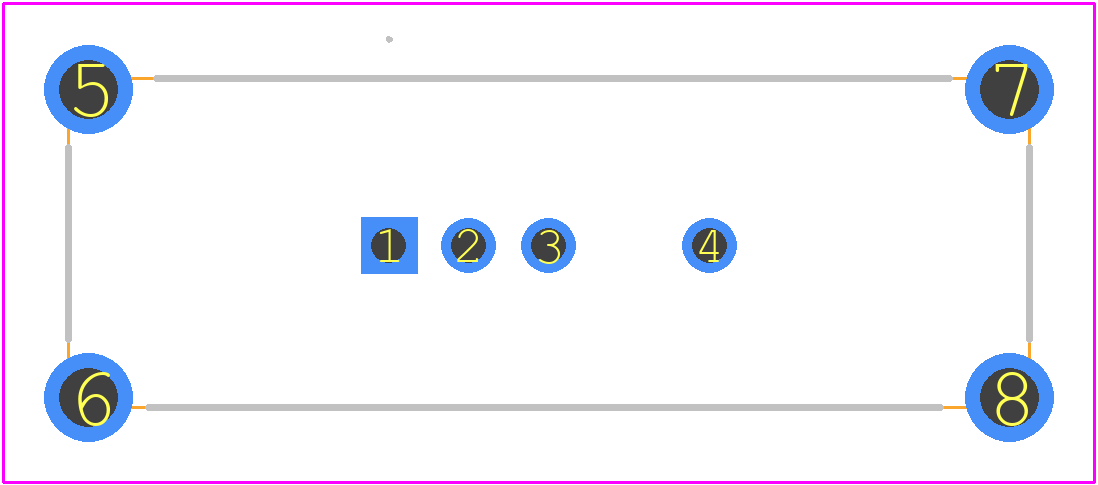

1825259-2 - TE Connectivity PCB footprint - Other - Other - 1825259-2-1
click to zoom
3D Models
1825259-2 - TE Connectivity - 3D model - Other - 1825259-2-1
click to zoom

1825259-2 Details

  • Manufacturer Part Number:

    1825259-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Factory Lead Time:

    17 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Actuator Color:

    BLACK

  • Actuator Length:

    0.15 inch

  • Actuator Material:

    POLYOXYMETHYLENE

  • Actuator Travel:

    2.0066 mm

  • Actuator Type:

    TOP TYPE

  • Body Breadth:

    8.2 mm

  • Body Height:

    12 mm

  • Body Length or Diameter:

    24 mm

  • Center Contact Plating:

    GOLD

  • Contact (AC) Max Rating R Load:

    .02A@20VAC

  • Contact Current(AC)-Max:

    0.4 A

  • Contact Current(DC)-Max:

    0.4 A

  • Contact (DC) Max Rating R Load:

    .02A@20VDC

  • Contact Function:

    ON-ON-ON

  • Contact Voltage(AC)-Max:

    20 V

  • Contact Voltage(DC)-Max:

    20 V

  • Electrical Life:

    15000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Number of Independent Keys:

    1

  • Number of Positions:

    3

  • Operating Force-Max:

    8.83 N

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TRAY

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SP3T

  • Switch Type:

    SLIDE SWITCH

  • Termination Type:

    SOLDER

1825259-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1825259-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 1825259-2 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required temperature specifications.
  • The 1825259-2 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you plan to use the connector in an environment with high humidity or exposure to chemicals, consult with TE Connectivity or a qualified engineer to determine the connector's suitability and any necessary precautions.
