1825264-1 - TE Connectivity

Description: Body Features: Actuator Color Black | Product Orientation Vertical | Actuator Profile Extended | Actuator Material POM | Actuator Travel 2 MM | Actuator Orientation Top | Actuator Travel .079 INCH | Configuration Features: Number of Positions 2 | Configuration (Pole-Throw) Four Pole - Double Throw | Operating Function On On | Terminals Connected 1-2, 4-5, 7-8, 10-11 | Number of Actuators Single | Contact Features: Contact Base Material Copper Alloy | Switch Contact Plating Material Silver | Contact Current

Download 1825264-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1825264-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

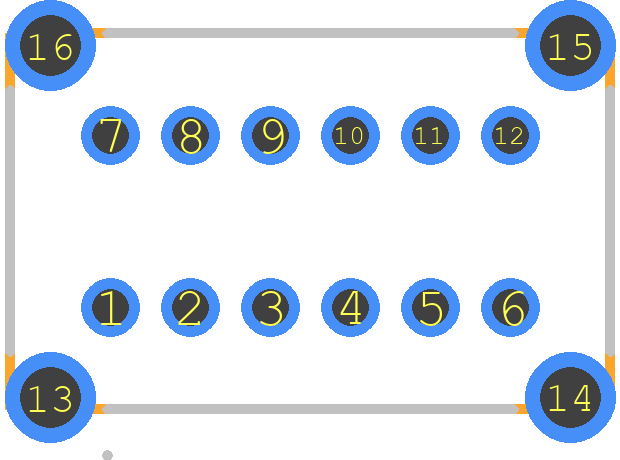

1825264-1 - TE Connectivity PCB footprint - Other - Other - 1825264-1
click to zoom
3D Models
1825264-1 - TE Connectivity - 3D model - Other - 1825264-1
click to zoom

1825264-1 Details

  • Manufacturer Part Number:

    1825264-1

  • Brand Name:

    Alcoswitch

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Factory Lead Time:

    16 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.95

  • Actuator Color:

    BLACK

  • Actuator Length:

    0.315 inch

  • Actuator Material:

    POLYOXYMETHYLENE

  • Actuator Travel:

    2.0066 mm

  • Actuator Type:

    EXTENDED TOP TYPE

  • Body Breadth:

    9.4 mm

  • Body Height:

    10 mm

  • Body Length or Diameter:

    15 mm

  • Center Contact Plating:

    SILVER

  • Contact (AC) Max Rating R Load:

    .3A@125VAC

  • Contact Current(AC)-Max:

    0.3 A

  • Contact Current(DC)-Max:

    0.3 A

  • Contact Function:

    ON-ON

  • Contact Voltage(AC)-Max:

    125 V

  • Electrical Life:

    15000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Number of Independent Keys:

    1

  • Number of Positions:

    2

  • Operating Force-Max:

    8.83 N

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TRAY

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    4PDT

  • Switch Type:

    SLIDE SWITCH

  • Termination Type:

    SOLDER

1825264-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 1825264-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1825264-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1825264-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and follow TE Connectivity's guidelines for use in humid or wet environments.
  • The 1825264-1 connector has a mating cycle life of at least 500 cycles. However, this may vary depending on the application, usage, and environmental conditions. Consult TE Connectivity's documentation and technical support for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1825264-1 Overview

Use the download button to access the 1825264-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18252, or try a keyword search, such as Slide Switches
