1825265-1 - TE Connectivity

1825265-1 Details

• Manufacturer Part Number:

  1825265-1

• Brand Name:

  Alcoswitch

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.50

• Factory Lead Time:

  16 Weeks, 2 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  7.95

• Actuator Color:

  BLACK

• Actuator Length:

  0.276 inch

• Actuator Material:

  POLYOXYMETHYLENE

• Actuator Travel:

  2.0066 mm

• Actuator Type:

  SIDE TYPE

• Additional Feature:

  ROHS COMPLIANT

• Body Breadth:

  9.4 mm

• Body Color:

  BLACK

• Body Height:

  10 mm

• Body Length or Diameter:

  14.4 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  .3A@125VAC

• Contact Current(AC)-Max:

  0.3 A

• Contact Current(DC)-Max:

  0.3 A

• Contact Function:

  ON-ON

• Contact Resistance:

  0.1 mΩ

• Contact Timing:

  MAKE-BEFORE-BREAK

• Contact Voltage(AC)-Max:

  125 V

• Dielectric Withstand Volts:

  500VRMS V

• Electrical Life:

  15000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  SILVER OVER NICKEL

• Housing Material:

  STEEL

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  PANEL MOUNT

• Number of Independent Keys:

  1

• Number of Positions:

  2

• Operating Force-Max:

  8.83 N

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

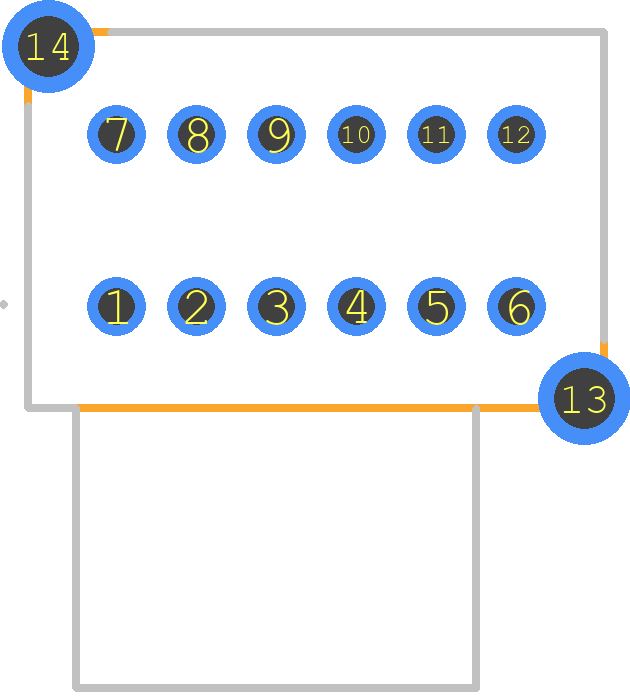

• PCB Hole Count:

  12

• Packing Method:

  TRAY

• Sealing:

  EPOXY TERMINAL SEALED

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  4PDT

• Switch Type:

  SLIDE SWITCH

• Terminal Length:

  0.118 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
