1825360-4 - TE Connectivity

Description: Body Features: Case Material Polyphenylene Sulfide (PPS) | Actuator Color White | Case Color Black | Product Orientation Vertical | Configuration Features: Number of Positions 6 | Configuration (Pole-Throw) Single Pole - Single Throw | Number of Switches 6 | Contact Features: PCB Contact Termination Area Plating Material Gold | Contact Underplating Material Nickel | Contact Base Material Copper Alloy | Contact Current Rating 1 AMP | Switch Contact Plating Material Gold Flash | Switch Contact Plating Materia

Download 1825360-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1825360-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

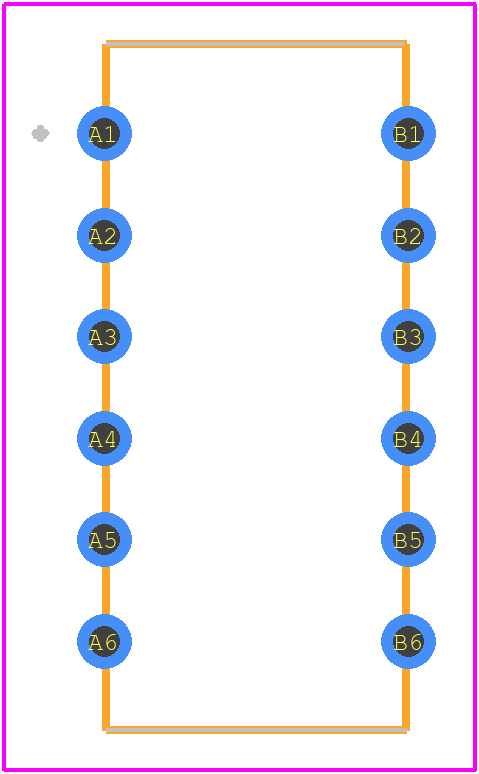

1825360-4 - TE Connectivity PCB footprint - Other - Other - 1825360-4-2
click to zoom
3D Models
1825360-4 - TE Connectivity - 3D model - Other - 1825360-4-2
click to zoom

1825360-4 Details

  • Manufacturer Part Number:

    1825360-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    17 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.4

  • Actuator Color:

    WHITE

  • Actuator Type:

    SLIDE TYPE

  • Body Height:

    3.5 mm

  • Body Length or Diameter:

    17.17 mm

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact Voltage(DC)-Max:

    5 V

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD OVER NICKEL

  • Housing Material:

    POLYPHENYLENE SULPHIDE

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Positions:

    6

  • Number of Switch Sections:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Length:

    0.157 inch

  • Termination Type:

    SOLDER

1825360-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1825360-4 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the jack screws.
  • Yes, the 1825360-4 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 1825360-4 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and meeting IP67 and IP69K ingress protection ratings.
  • The 1825360-4 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the 1825360-4 connector is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option available.
