1825360-6 - TE Connectivity

Description: Body Features: Actuator Color White | Case Material Polyphenylene Sulfide (PPS) | Case Color Black | Product Orientation Vertical | Configuration Features: Number of Switches 10 | Number of Positions 10 | Configuration (Pole-Throw) Single Pole - Single Throw | Contact Features: PCB Contact Termination Area Plating Material Gold | Switch Contact Plating Material Gold Flash | Contact Underplating Material Nickel | Contact Base Material Copper Alloy | Contact Current Rating 1 AMP | Switch Contact Plating Mater

Download 1825360-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1825360-6 - TE Connectivity - PCB symbol
click to zoom

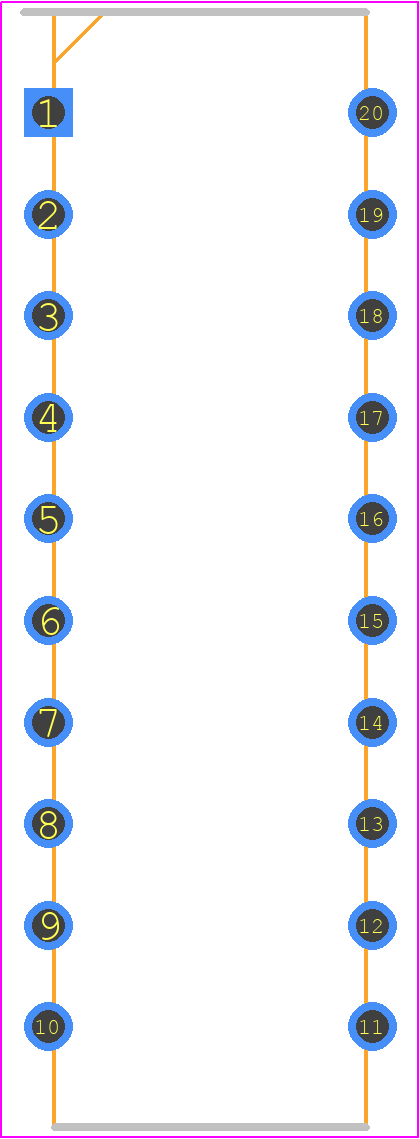

PCB Footprints
1825360-6 - TE Connectivity PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 1825360-6-2
click to zoom
3D Models
1825360-6 - TE Connectivity - 3D model - Dual-In-Line Packages - 1825360-6-2
click to zoom

1825360-6 Details

  • Manufacturer Part Number:

    1825360-6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.3

  • Actuator Color:

    WHITE

  • Actuator Type:

    SLIDE TYPE

  • Body Height:

    3.5 mm

  • Body Length or Diameter:

    27.38 mm

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact Voltage(DC)-Max:

    5 V

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD OVER NICKEL

  • Housing Material:

    POLYPHENYLENE SULPHIDE

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Positions:

    10

  • Number of Switch Sections:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Length:

    0.157 inch

  • Termination Type:

    SOLDER

1825360-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1825360-6 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373 Cat. 2. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1825360-6 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 1825360-6 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 1825360-6 connector. However, it's crucial to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1825360-6 Overview

Use the download button to access the 1825360-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18253, or try a keyword search, such as DIP Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
