1825690000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 7, PUSH IN with actuator, THT/THR solder connection, 180°, Tube

Download 1825690000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1825690000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

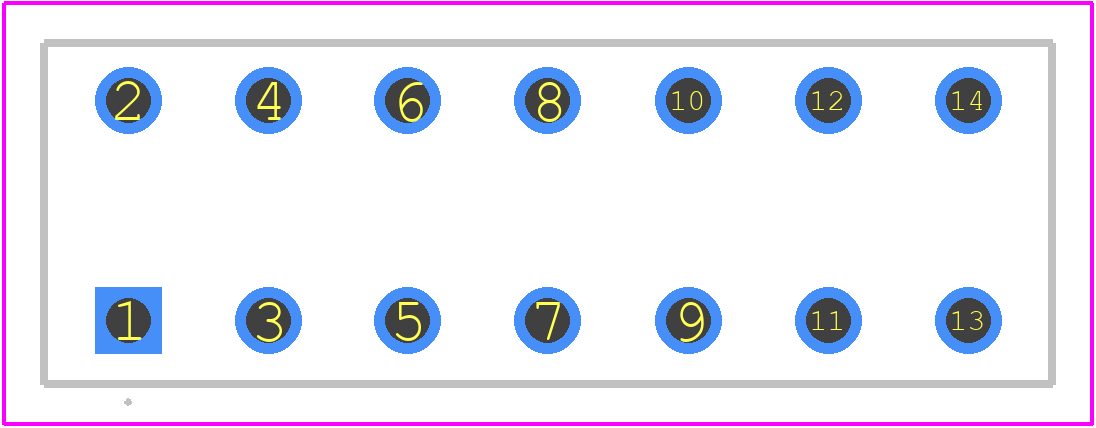

1825690000 - Weidmüller PCB footprint - Other - Other - 1825690000-2
click to zoom
3D Models
1825690000 - Weidmüller - 3D model - Other - 1825690000-2
click to zoom

1825690000 Details

  • Manufacturer Part Number:

    1825690000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT
