1825700000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 8, PUSH IN with actuator, THT/THR solder connection, 180°, Tube

Download 1825700000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1825700000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

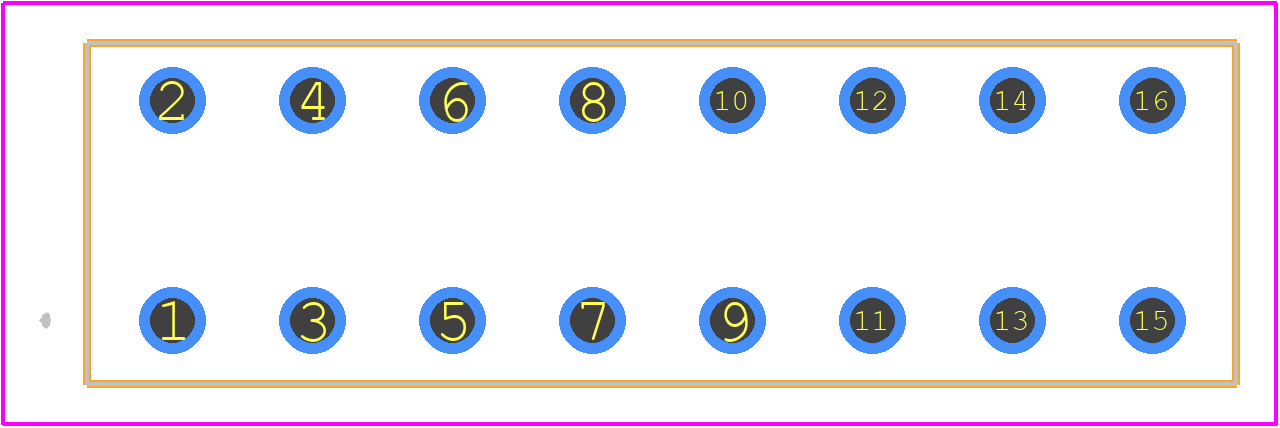

1825700000 - Weidmüller PCB footprint - Other - Other - 1825700000-3
click to zoom
3D Models
1825700000 - Weidmüller - 3D model - Other - 1825700000-3
click to zoom

1825700000 Details

  • Manufacturer Part Number:

    1825700000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    GLASS FILLED LCP, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1825700000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1825700000 is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1825700000 is designed for outdoor use and has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
  • The maximum current rating for the 1825700000 is 10A per pin, making it suitable for use in applications where high currents are required.
  • Yes, the 1825700000 is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces.
  • The 1825700000 uses a screw termination method, which provides a secure and reliable connection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1825700000 Overview

Use the download button to access the 1825700000 schematic symbol, PCB footprint, and 3D model.
