1827334 - Phoenix Contact

Description: SMC 1,5/ 8-G-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: SMC 1,5/..-G, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignme

Download 1827334 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1827334 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

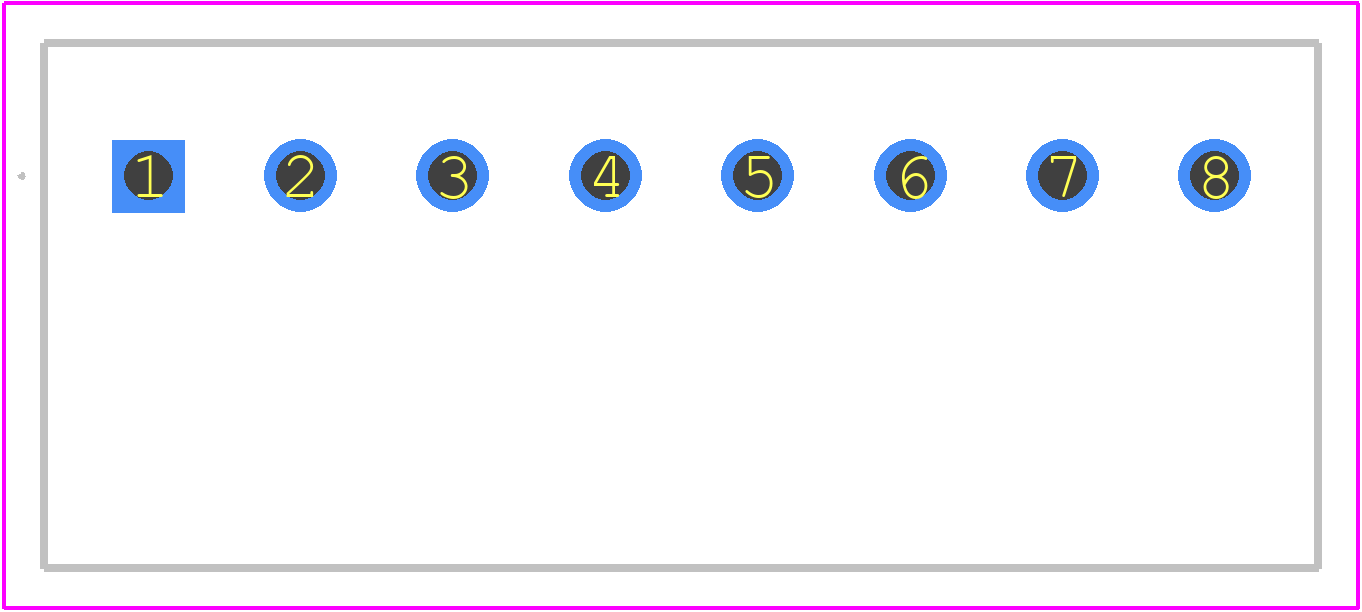

1827334 - Phoenix Contact PCB footprint - Other - Other - 1827334-2
click to zoom
3D Models
1827334 - Phoenix Contact - 3D model - Other - 1827334-2
click to zoom

1827334 Details

  • Manufacturer Part Number:

    1827334

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PA, 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1827334 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1827334 is -40°C to 125°C.
  • Yes, the 1827334 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • The 1827334 is not certified for use in hazardous locations. If you need a product for hazardous locations, consider the Phoenix Contact 1827334-EX or consult with a Phoenix Contact representative.
  • The 1827334 can accommodate wire sizes up to 2.5 mm² (AWG 14).
  • Yes, the 1827334 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
