1827525 - Phoenix Contact

Description: SMC 1,5/12-GF-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: SMC 1,5/..-GF, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern al

Download 1827525 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1827525 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

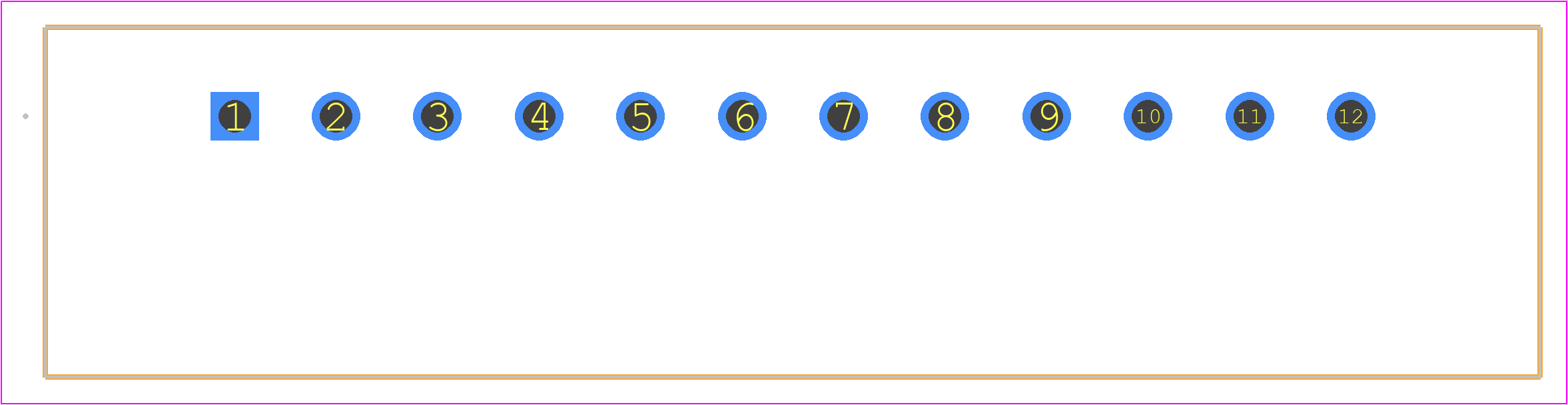

1827525 - Phoenix Contact PCB footprint - Other - Other - 1827525
click to zoom
3D Models
1827525 - Phoenix Contact - 3D model - Other - 1827525
click to zoom

1827525 Details

  • Manufacturer Part Number:

    1827525

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1827525 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 1827525 connector is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the 1827525 connector is designed to withstand high-vibration environments. It meets the IEC 61373 standard for vibration resistance, making it suitable for use in applications such as rail, transportation, and industrial control systems.
  • Yes, the 1827525 connector is part of the Phoenix Contact COMBI series, which is designed to be compatible with other COMBI products. It can be used in conjunction with other COMBI connectors, adapters, and accessories.
  • The maximum operating temperature for the 1827525 connector is 125°C, as specified in the datasheet. However, it's essential to note that the connector's performance may degrade at higher temperatures, and it's recommended to consult the datasheet and application notes for specific temperature-related guidelines.
  • Yes, the 1827525 connector is designed to be used in outdoor and harsh environmental applications. It has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in applications such as outdoor lighting, signage, and industrial control systems.
