Part Image

1827585-1 - TE Connectivity

Description: Body Features: Connector Profile Standard | LED Color (Top Right) Clear | Shield Plating Material Tin over Nickel | Shield Material Phosphor Bronze | LED Color (Top Left) Clear | Modular Jack Latch Orientation Inverted - Latch Up | Configuration Features: Number of Loaded Positions 8 | Panel Ground Location Top | Panel Ground Location Top and Side | Connector Contact Density Standard | Port Configuration Single Port | PCB Mount Orientation Right Angle | Number of PCB Ground Tabs 4 | Number of Positions 8 |

Download 1827585-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

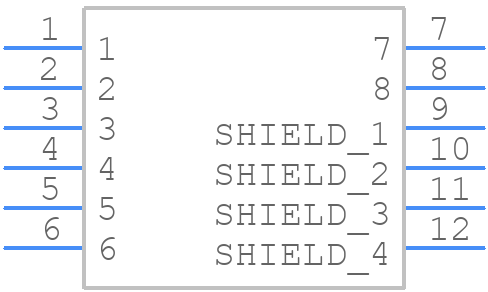

Symbol
1827585-1 - TE Connectivity - PCB symbol
click to zoom

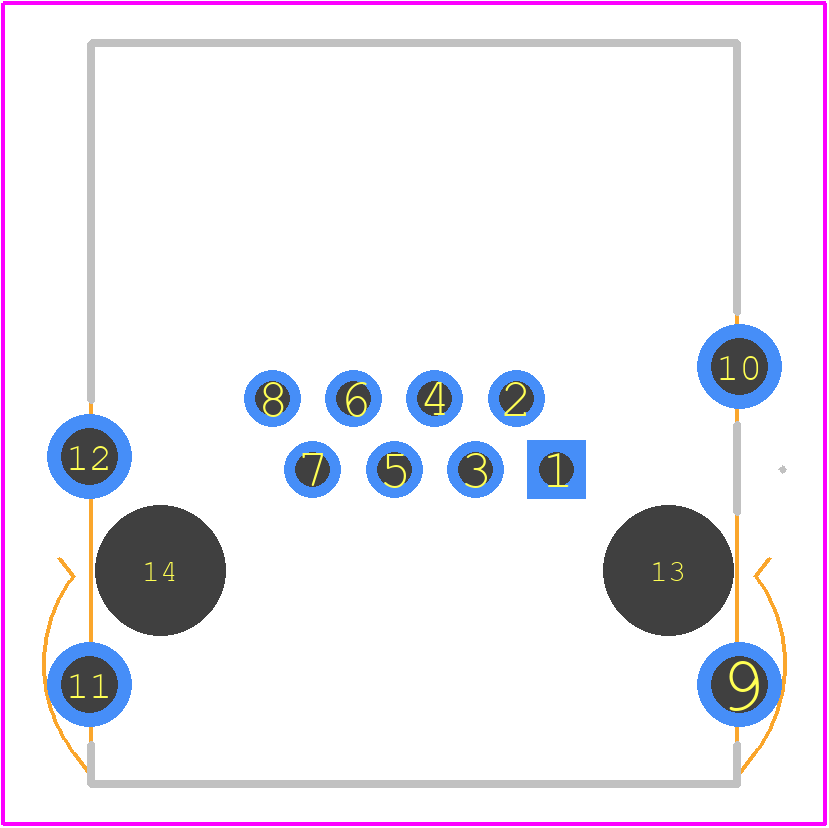

PCB Footprints
1827585-1 - TE Connectivity PCB footprint - Other - Other - 1827585-1-2
click to zoom
3D Models
1827585-1 - TE Connectivity - 3D model - Other - 1827585-1-2
click to zoom

1827585-1 Details

  • Manufacturer Part Number:

    1827585-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Depth:

    0.529 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    100u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    PHOSPHOR BRONZE

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1827585-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 1827585-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1827585-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1827585-1 connector has a sealed design, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
  • The 1827585-1 connector is designed for specific wire gauges and types. Consult TE Connectivity's documentation or contact their support to determine the compatibility of the connector with your specific wire requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1827585-1 Overview

Use the download button to access the 1827585-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18275, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
