Description: MC 1,5/ 8-GF-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: MC 1,5/..-GF, pitch: 3.81 mm, screw head form: L Slotted, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, P

Download 1827923 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1827923 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

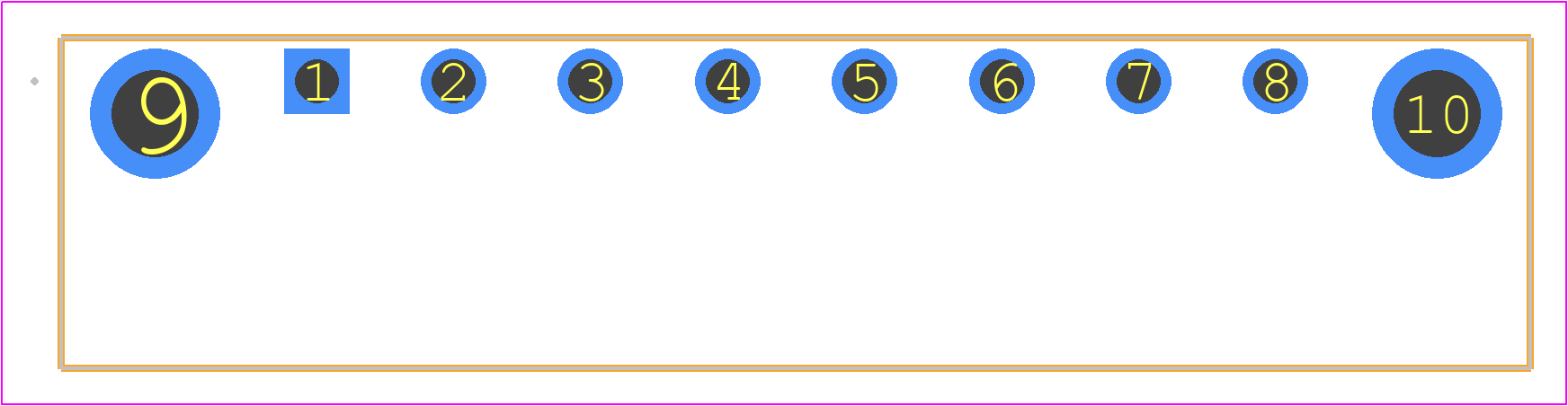

1827923 - Phoenix Contact PCB footprint - Other - Other - 1827923
click to zoom
3D Models
1827923 - Phoenix Contact - 3D model - Other - 1827923
click to zoom

1827923 Details

  • Manufacturer Part Number:

    1827923

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, PBT

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1827923 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting.
  • Yes, the 1827923 connector is designed to withstand vibrations and shocks according to IEC 61373 Category 1, Class 1, making it suitable for high-vibration environments.
  • Yes, the 1827923 connector is designed for automated assembly and is compatible with reflow soldering processes, making it suitable for high-volume production.
  • The operating temperature range for the 1827923 connector is -40°C to 125°C, making it suitable for a wide range of industrial and commercial applications.
  • The 1827923 connector has a IP20 rating, which means it provides some protection against solid objects and fingers, but it's not designed for immersion in water or exposure to high humidity. For humid or wet environments, consider using a connector with a higher IP rating.
