1828870000 - Weidmüller

Description: PCB connector (board connection), 320 V, 15 A, Pitch in mm: 5.08, Number of poles: 24, THT/THR solder connection, Box

Download 1828870000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

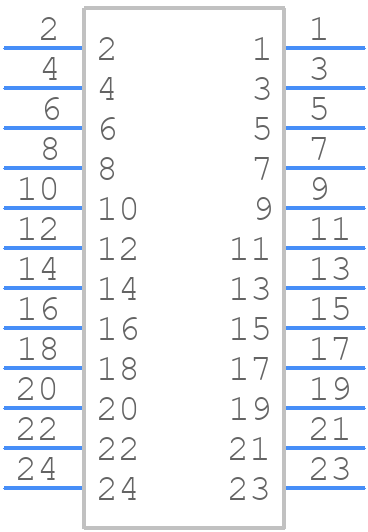

1828870000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

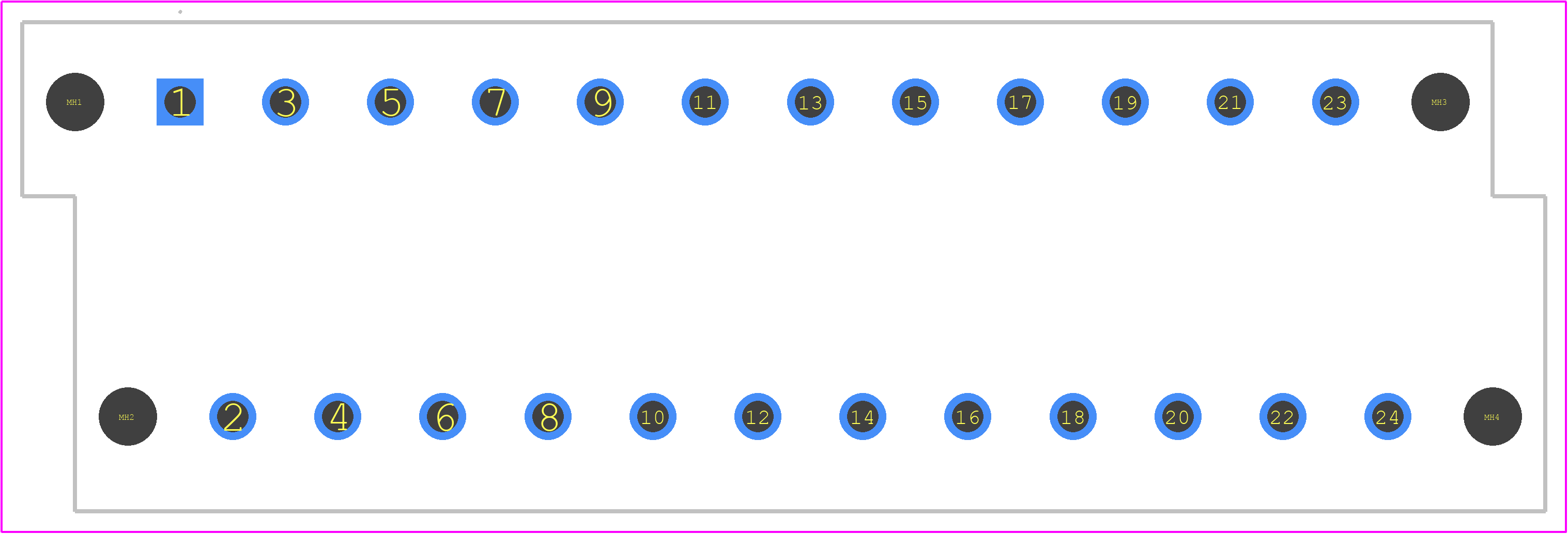

1828870000 - Weidmüller PCB footprint - Other - Other - 1828870000-2
click to zoom
3D Models
1828870000 - Weidmüller - 3D model - Other - 1828870000-2
click to zoom

1828870000 Details

  • Manufacturer Part Number:

    1828870000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

1828870000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1828870000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1828870000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, allowing for seamless integration into industrial networks.
  • The maximum cable length supported by the 1828870000 depends on the specific application and cable type, but generally, it can support cable lengths up to 100 meters.
  • The 1828870000 has built-in surge protection, which provides a high level of protection against electrical surges and spikes, eliminating the need for external protection in most cases.
  • The 1828870000 is designed to meet the requirements for use in hazardous locations, including explosion-proof areas, but it's essential to consult the manufacturer's documentation and relevant industry standards to ensure compliance.
