1828910000 - Weidmüller

Description: PCB connector (board connection), 320 V, 15 A, Pitch in mm: 5.08, Number of poles: 8, THT/THR solder connection, Box

Download 1828910000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1828910000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

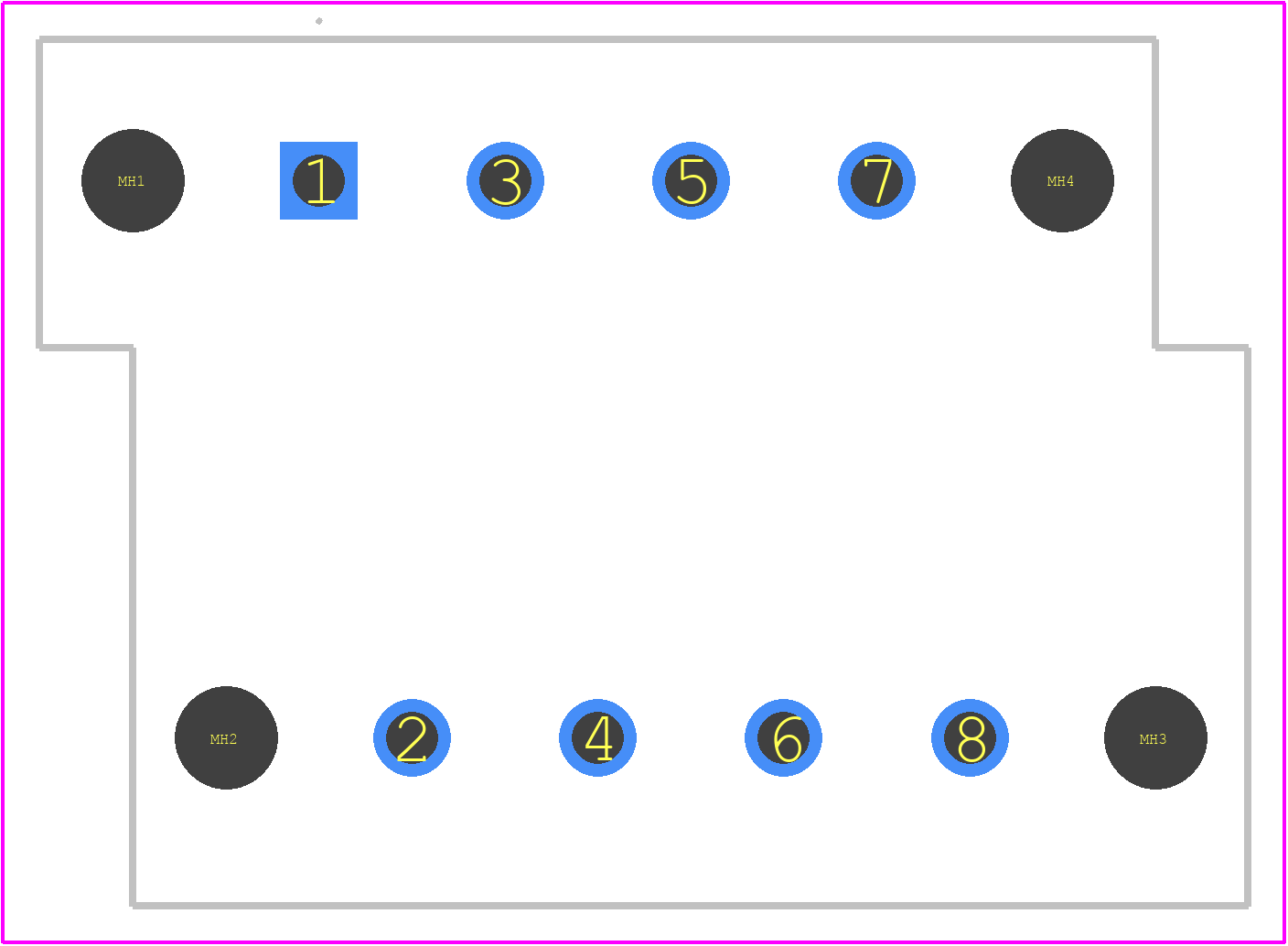

1828910000 - Weidmüller PCB footprint - Other - Other - 1828910000
click to zoom
3D Models
1828910000 - Weidmüller - 3D model - Other - 1828910000
click to zoom

1828910000 Details

  • Manufacturer Part Number:

    1828910000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.87

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1828910000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1828910000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1828910000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1828910000 is 32A, making it suitable for use in high-power applications.
  • Yes, the 1828910000 has built-in surge protection, which helps to protect against voltage spikes and electromagnetic interference (EMI).
  • Yes, the 1828910000 is UL certified, which means it meets the safety standards of Underwriters Laboratories, a leading independent safety science company.
