Description: GICV 2,5/ 5-G-7,62 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Socket, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: GICV 2,5/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.6 mm, number of solder pins per potential: 2, plug-in system: COMBICON MSTB 2,5, Pin connector pattern

Download 1828948 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1828948 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

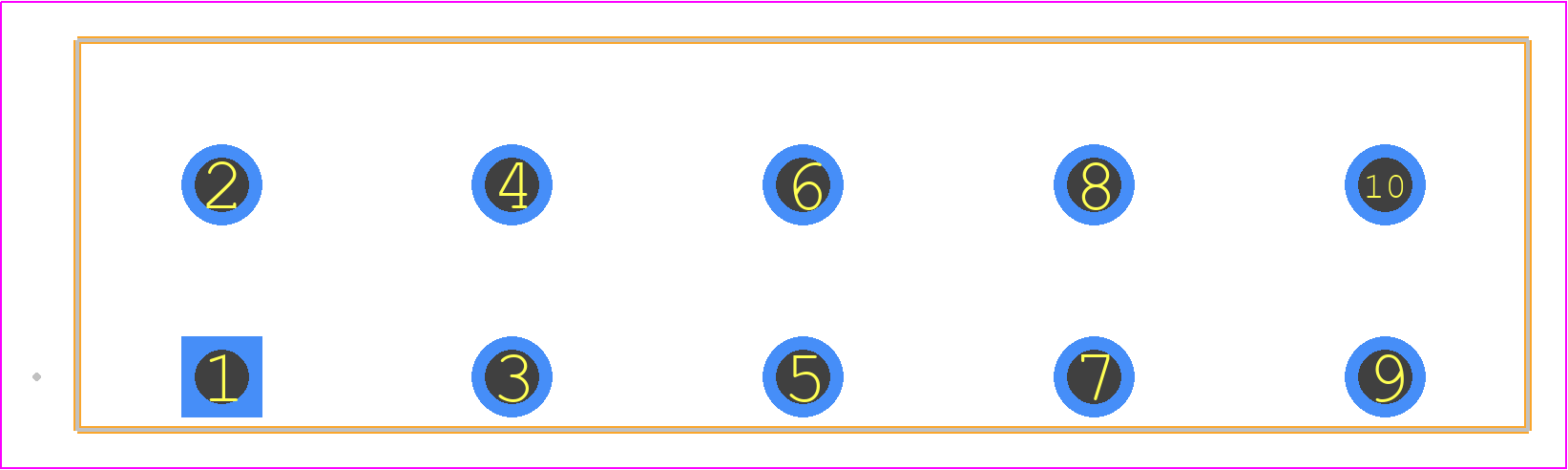

1828948 - Phoenix Contact PCB footprint - Other - Other - 1828948
click to zoom
3D Models
1828948 - Phoenix Contact - 3D model - Other - 1828948
click to zoom

1828948 Details

  • Manufacturer Part Number:

    1828948

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Fastening Method:

    PLUG IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    12 A

  • Rated Voltage:

    400 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    13 AWG

1828948 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1828948 connector is designed to withstand high vibrations and is suitable for use in applications with intense mechanical stress, such as in industrial automation or transportation systems.
  • The 1828948 connector has a high level of resistance to chemicals and corrosive substances, including oil, fuel, and saltwater. However, it's essential to check the specific chemical resistance for your application.
  • The 1828948 connector has an IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter. However, it's crucial to ensure proper sealing and installation to maintain the IP67 rating.
  • The 1828948 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including those with extreme temperature fluctuations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1828948 Overview

Use the download button to access the 1828948 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18289, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
