1829000000 - Weidmüller

Description: PCB connector (board connection), 320 V, 15 A, Pitch in mm: 5.08, Number of poles: 26, THT/THR solder connection, Box

Download 1829000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

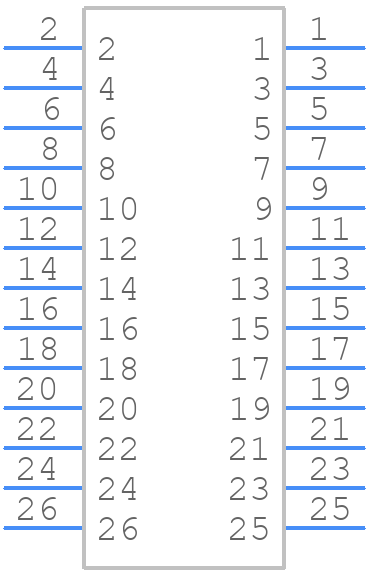

Symbol
1829000000 - Weidmüller - PCB symbol
click to zoom

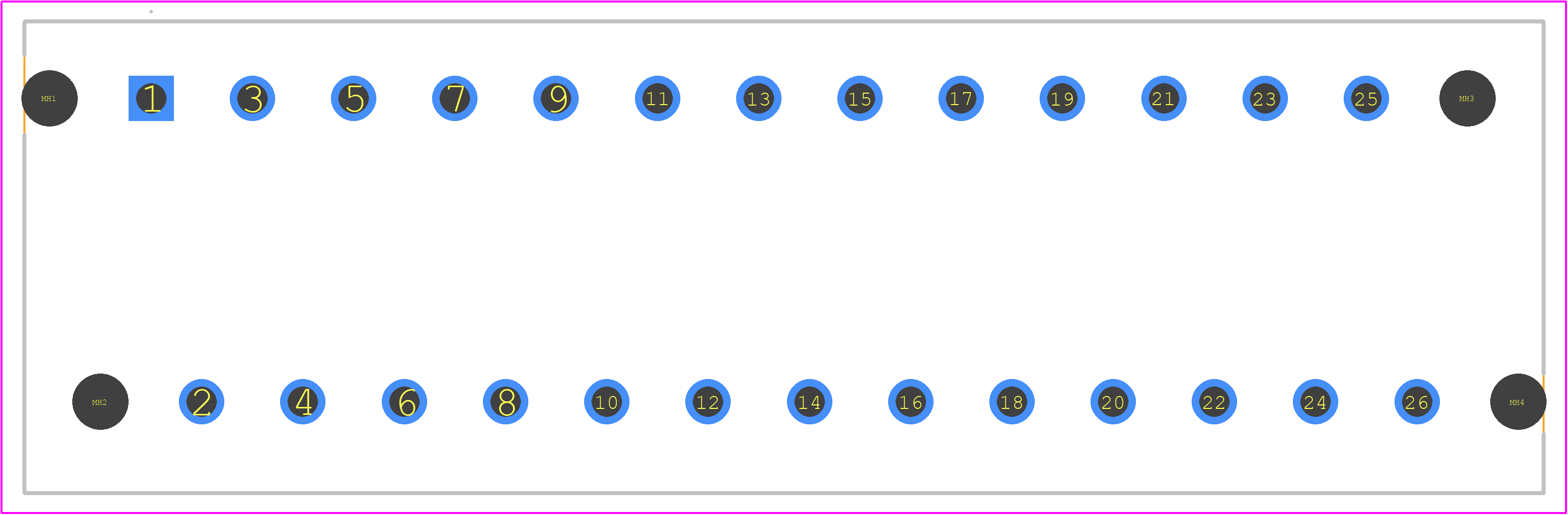

PCB Footprints
1829000000 - Weidmüller PCB footprint - Other - Other - 1829000000
click to zoom
3D Models
1829000000 - Weidmüller - 3D model - Other - 1829000000
click to zoom

1829000000 Details

  • Manufacturer Part Number:

    1829000000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.87

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

1829000000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1829000000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1829000000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, allowing for seamless integration into industrial networks.
  • The maximum cable length supported by the 1829000000 depends on the specific application and cable type used. However, as a general guideline, Weidmüller recommends a maximum cable length of 100 meters for most industrial Ethernet applications.
  • The 1829000000 has built-in surge protection to ensure reliable operation in harsh industrial environments. However, depending on the specific application and environmental conditions, additional external protection may be required to meet specific safety standards or regulations.
  • The 1829000000 is designed to meet the requirements of various hazardous location standards, including ATEX and IECEx. However, it is essential to consult the specific certification documents and follow the manufacturer's guidelines for use in hazardous locations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1829000000 Overview

Use the download button to access the 1829000000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18290, or try a keyword search, such as Power Connectors
