183-015-213R181 - NorComp

Description: 15 Position D-Sub Receptacle, Female Sockets Connector

Download 183-015-213R181 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 183-015-213R181 model

Email notifications will be applied after download.

Send part feedback

Symbol

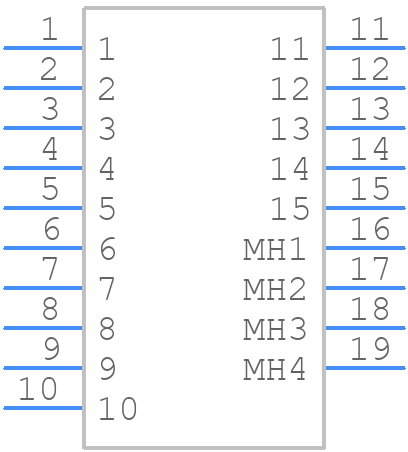

183-015-213R181 - NorComp - PCB symbol

PCB Footprints

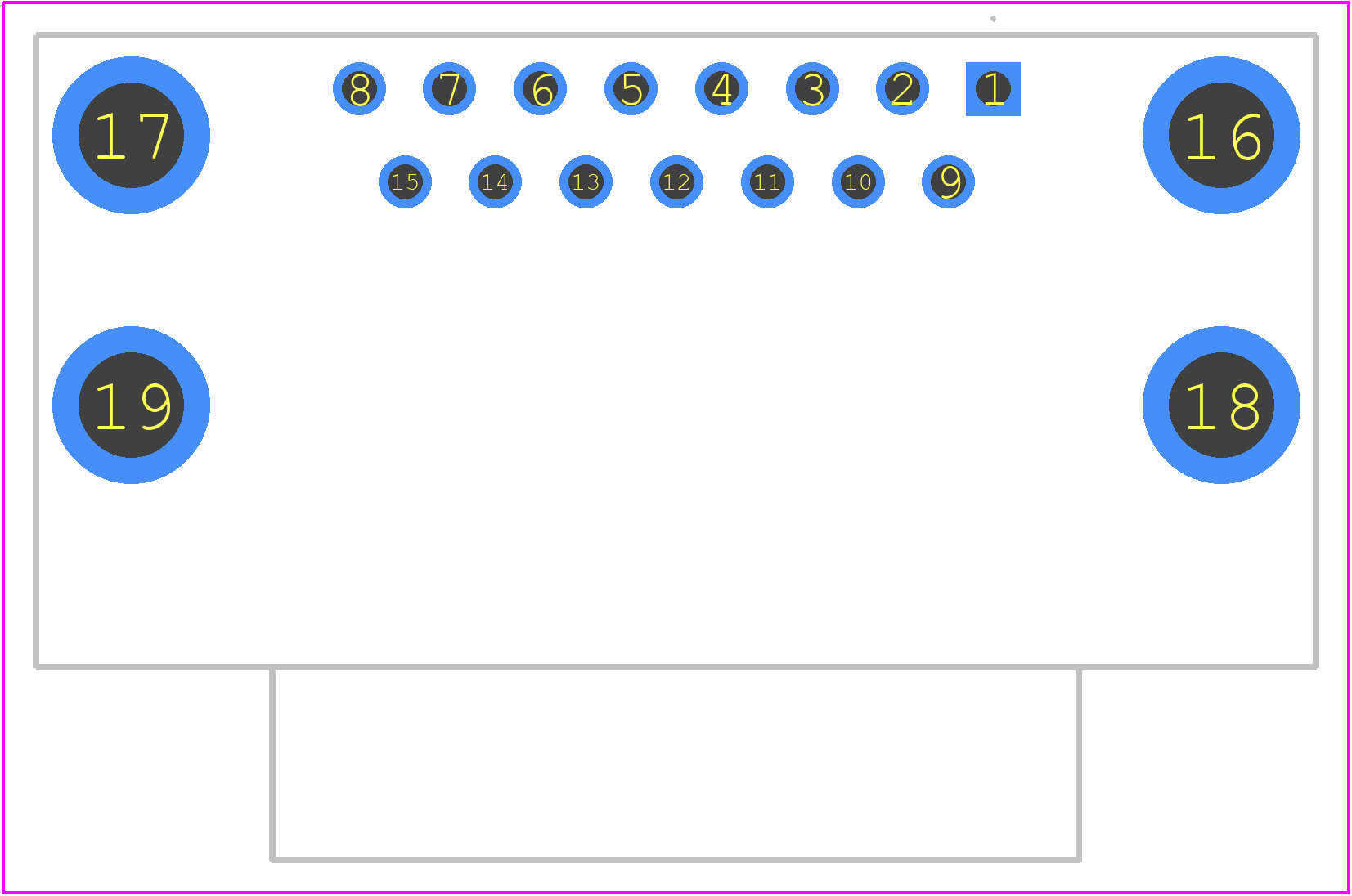

183-015-213R181 - NorComp PCB footprint - Other - Other - 183-015-213R181-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 183-015-213R181
Part Number 183-015-213R181
Manufacturer NorComp
Pin Count 19
Part Category Connector
Package Category Other
Footprint Name Other - 183-015-213R181-2
Released Date Feb 18, 2025
Last Modified Date Jun 5, 2026 7:02 AM UTC
Pinout / Pin List Click Here (Member Only)

183-015-213R181 Details

Manufacturer Part Number:
183-015-213R181
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Material:
NOT SPECIFIED
JESD-609 Code:
e4

Trust Checks

Community Provided

System Verified

Community Approved

183-015-213R181 Overview

Use the download button to access the 183-015-213R181 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 183-0, or try a keyword search
