1830062 - Phoenix Contact

Description: MCD 1,5/13-G-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 26, number of rows: 2, number of positions: 13, number of connections: 26, product range: MCD 1,5/..-G, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alig

Download 1830062 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

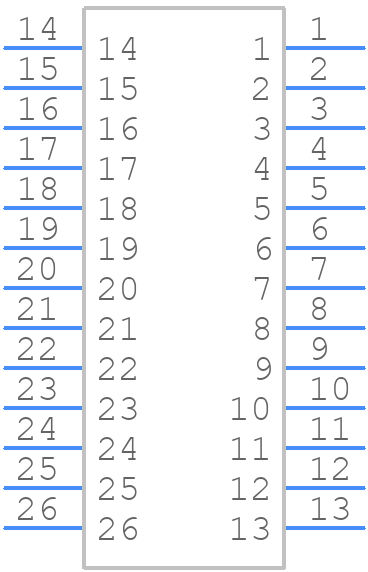

1830062 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

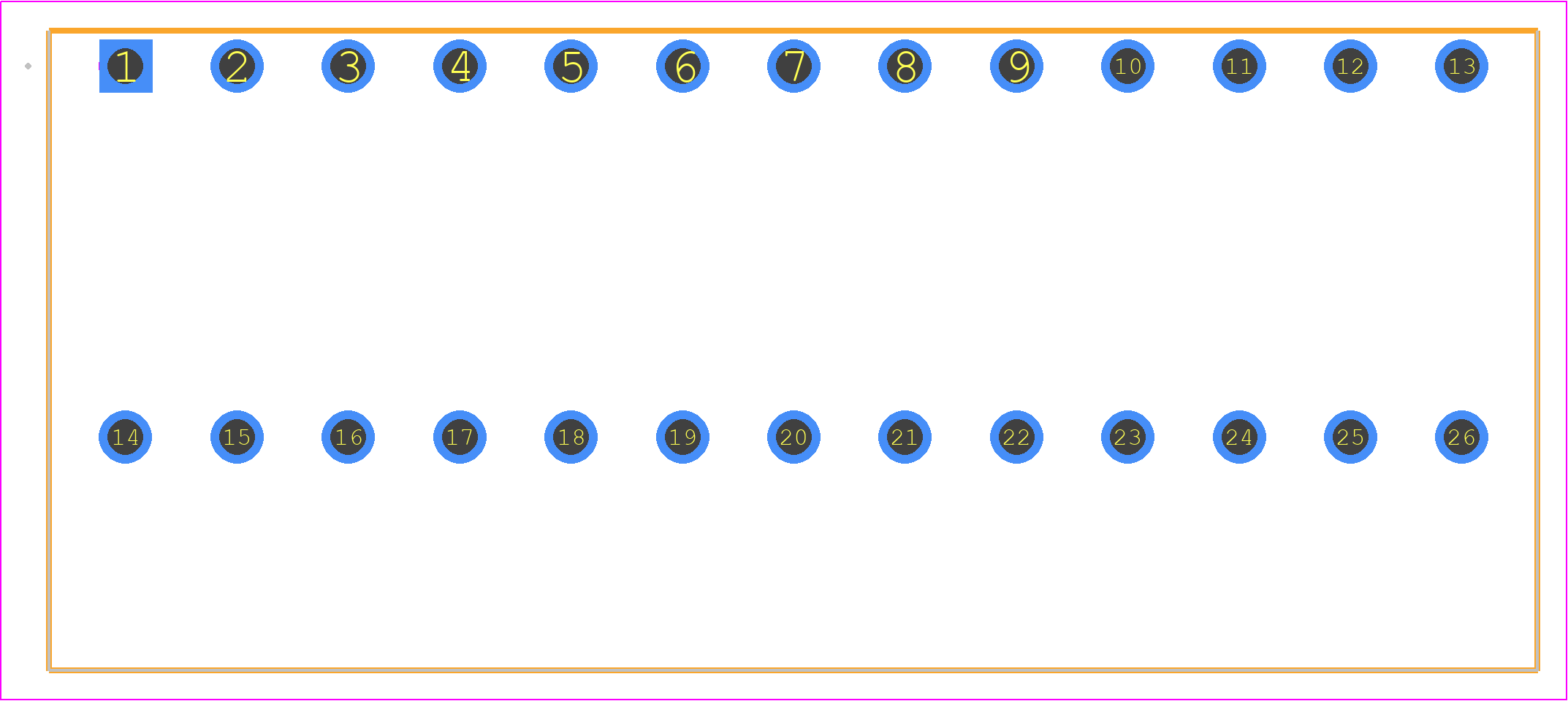

1830062 - Phoenix Contact PCB footprint - Other - Other - 1830062
click to zoom
3D Models
1830062 - Phoenix Contact - 3D model - Other - 1830062
click to zoom

1830062 Details

  • Manufacturer Part Number:

    1830062

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    13

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1830062 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact application notes.
  • While the 1830062 connector is designed for industrial use, it is not specifically rated for outdoor use. However, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV, and extreme temperatures.
  • It is not recommended to use the 1830062 connector with a different wire gauge than specified, as this may affect the connector's performance and reliability. However, Phoenix Contact provides a range of connectors that can accommodate different wire gauges, so it's best to consult their product catalog or contact their technical support for guidance.
  • Yes, the 1830062 connector is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and accessories. However, it's always best to verify compatibility before making a purchase or designing a system.
  • The maximum operating temperature for the 1830062 connector is 125°C, as specified in the datasheet. However, it's essential to consider the temperature rating of the entire system, including the cable and other components, to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1830062 Overview

Use the download button to access the 1830062 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18300, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
