1830444 - Phoenix Contact

Description: MCDV 1,5/ 6-G-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 12, number of rows: 2, number of positions: 6, number of connections: 12, product range: MCDV 1,5/..-G, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern ali

Download 1830444 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1830444 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

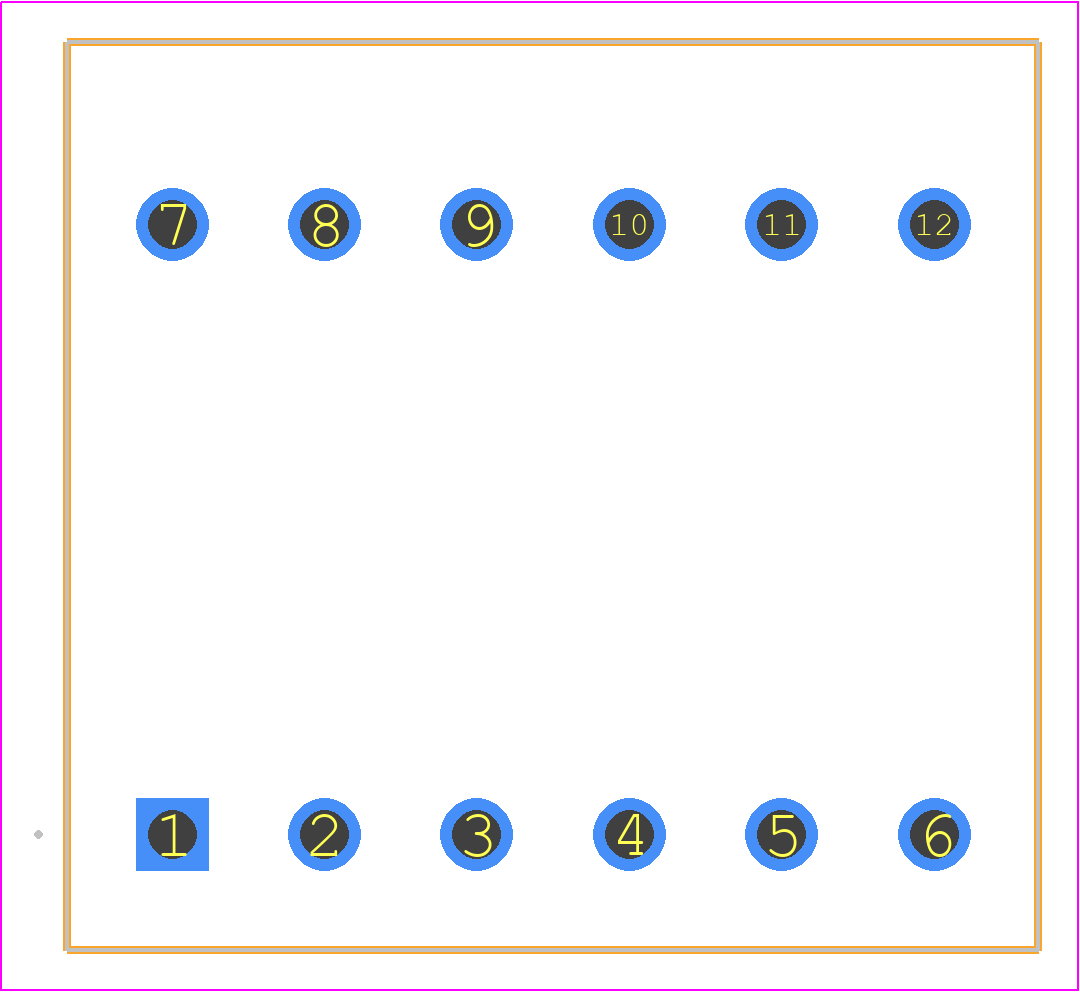

1830444 - Phoenix Contact PCB footprint - Other - Other - 1830444
click to zoom
3D Models
1830444 - Phoenix Contact - 3D model - Other - 1830444
click to zoom

1830444 Details

  • Manufacturer Part Number:

    1830444

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1830444 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1830444 is -40°C to 125°C.
  • Yes, the 1830444 is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 1830444 is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10g.
  • The maximum current rating of the 1830444 is 16 A per pin.
  • Yes, the 1830444 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
