1830621 - Phoenix Contact

Description: IMC 1,5/ 8-G-3,5 RN P20 THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Socket, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: IMC 1,5/..-G-RN-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 2, plug-in system: COMBICON FMC

Download 1830621 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

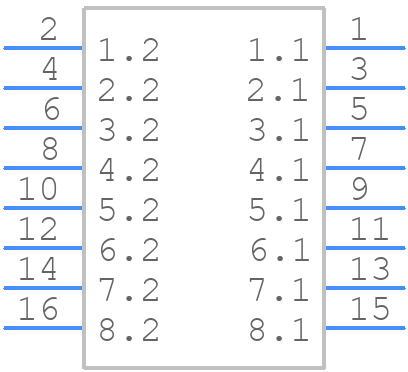

Symbol
1830621 - Phoenix Contact - PCB symbol
click to zoom

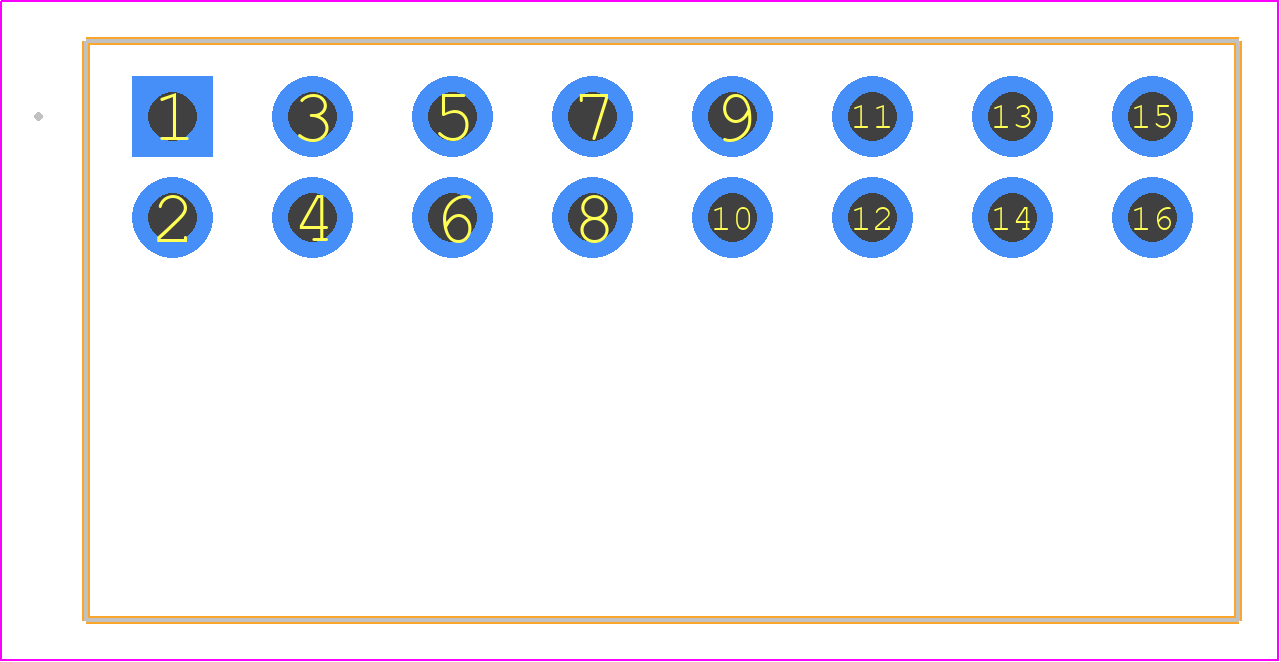

PCB Footprints
1830621 - Phoenix Contact PCB footprint - Other - Other - 1830621
click to zoom
3D Models
1830621 - Phoenix Contact - 3D model - Other - 1830621
click to zoom

1830621 Details

  • Manufacturer Part Number:

    1830621

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Additional Feature:

    STANDARD: UL 94V-0, LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB;CUL;EAC;IECEE;UL;VDE

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    15 AWG

1830621 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 1830621 connector onto the PCB is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1830621 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10 g (according to IEC 60068-2-6).
  • Yes, the 1830621 connector is designed for use in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH (according to IEC 60068-2-78).
  • The maximum current rating for the 1830621 connector is 12 A per contact, depending on the specific application and wire size used.
  • Yes, the 1830621 connector is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option available.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1830621 Overview

Use the download button to access the 1830621 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18306, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
