183J24 - Hammond Manufacturing

Description: Power Transformers DualPrimary 115/230V 30VA, 24V CT @ 1.25A

Download 183J24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

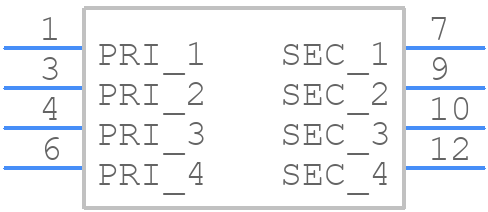

183J24 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

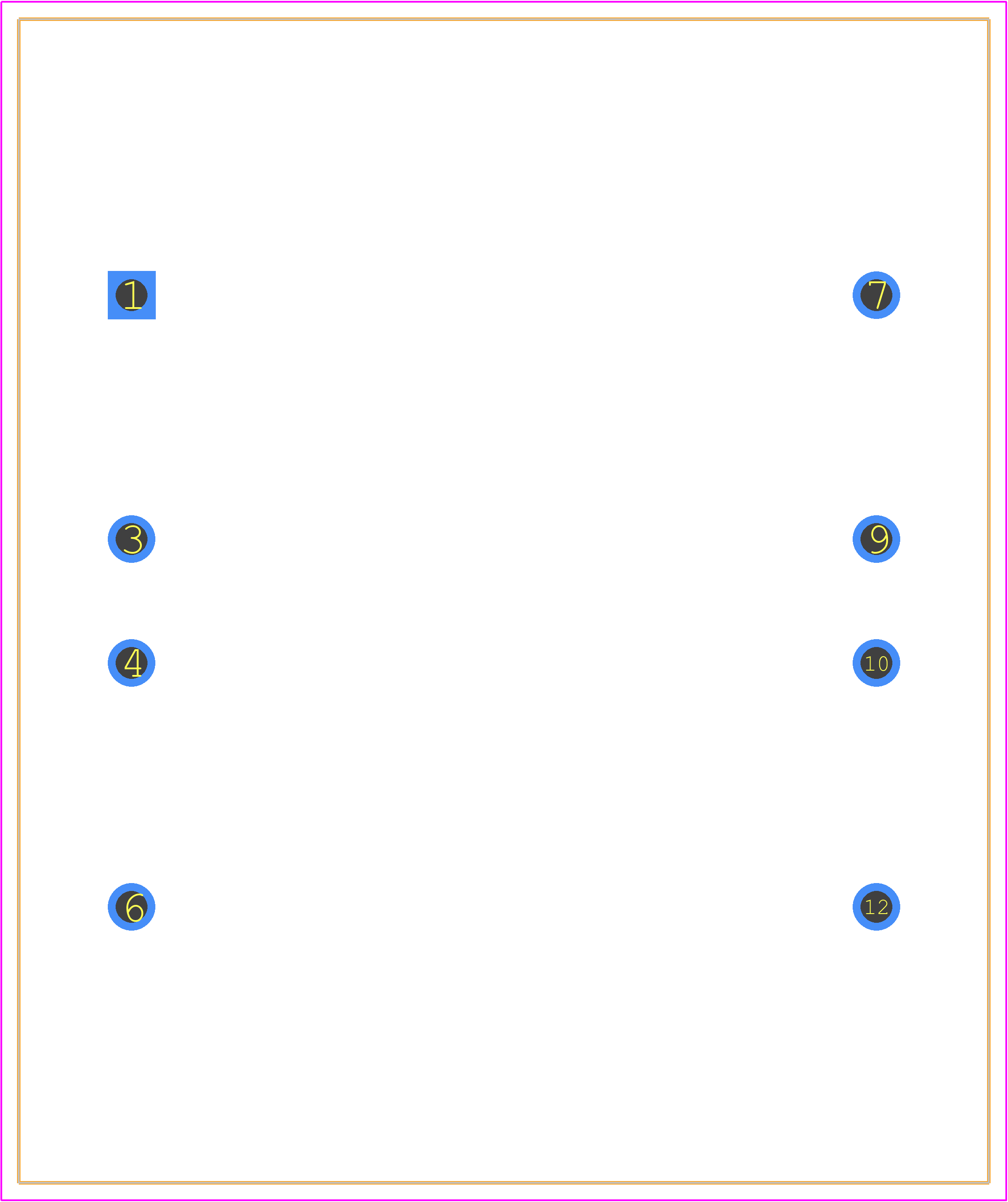

183J24 - Hammond Manufacturing PCB footprint - Other - Other - 183J24-4
click to zoom
3D Models
183J24 - Hammond Manufacturing - 3D model - Other - 183J24-4
click to zoom

183J24 Details

  • Manufacturer Part Number:

    183J24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6.3

  • Approvals:

    CSA; CE; CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    39.6 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    4000 V

  • Length:

    66.8 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    2.5 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    30 VA

  • Width:

    55.6 mm

183J24 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 183J24 is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 183J24 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the enclosure to ensure optimal performance.
  • The 183J24 is not designed for outdoor use and should be used in a controlled indoor environment. If outdoor use is required, consider using a NEMA-rated enclosure or consulting with Hammond Manufacturing for a custom solution.
  • Yes, Hammond Manufacturing offers customization services for the 183J24. Contact their customer support or sales team to discuss your specific requirements and obtain a quote.
  • The 183J24 has an IP rating of IP20, which means it provides protection against solid objects larger than 12.5 mm and does not provide protection against water or moisture.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

183J24 Overview

Use the download button to access the 183J24 schematic symbol, PCB footprint, and 3D model.
