183K36 - Hammond Manufacturing

Description: Power Transformers DualPrimary 115/230V 56VA, 36V CT @ 1.56A

Download 183K36 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
183K36 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

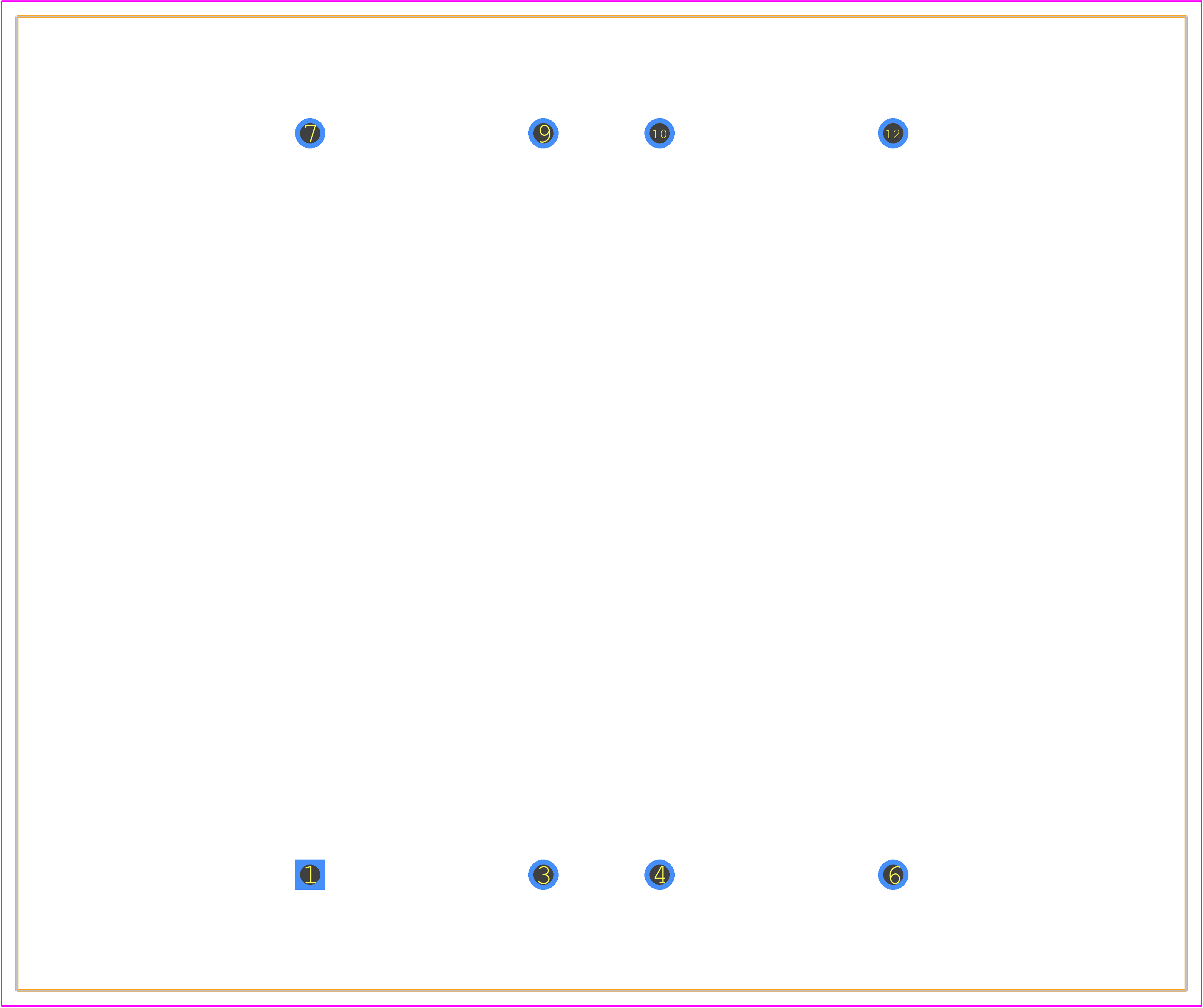

183K36 - Hammond Manufacturing PCB footprint - Other - Other - 183K36-2
click to zoom
3D Models
183K36 - Hammond Manufacturing - 3D model - Other - 183K36-2
click to zoom

183K36 Details

  • Manufacturer Part Number:

    183K36

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.65

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6.3

  • Approvals:

    CSA; CE; CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    46 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    4000 V

  • Length:

    76.2 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    3.12 A

  • Output Voltage 1:

    18 V

  • Output Voltage 2:

    18 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    56 VA

  • Width:

    63.5 mm

183K36 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 183K36 is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 183K36 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
  • The 183K36 has a rating of IP20, which means it's not suitable for outdoor use or exposure to moisture. If you need a transformer for outdoor use, consider a different model with a higher IP rating.
  • No, the 183K36 is designed for AC input only. Using a DC input may damage the transformer or affect its performance.
  • The maximum ambient temperature for the 183K36 is 40°C (104°F). Operating the transformer above this temperature may reduce its lifespan or affect its performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

183K36 Overview

Use the download button to access the 183K36 schematic symbol, PCB footprint, and 3D model.
