1840180000 - Weidmüller

Description: PCB connector (board connection), 320 V, 27.5 A, Pitch in mm: 5.00, Number of poles: 8, THT/THR solder connection, Box

Download 1840180000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1840180000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

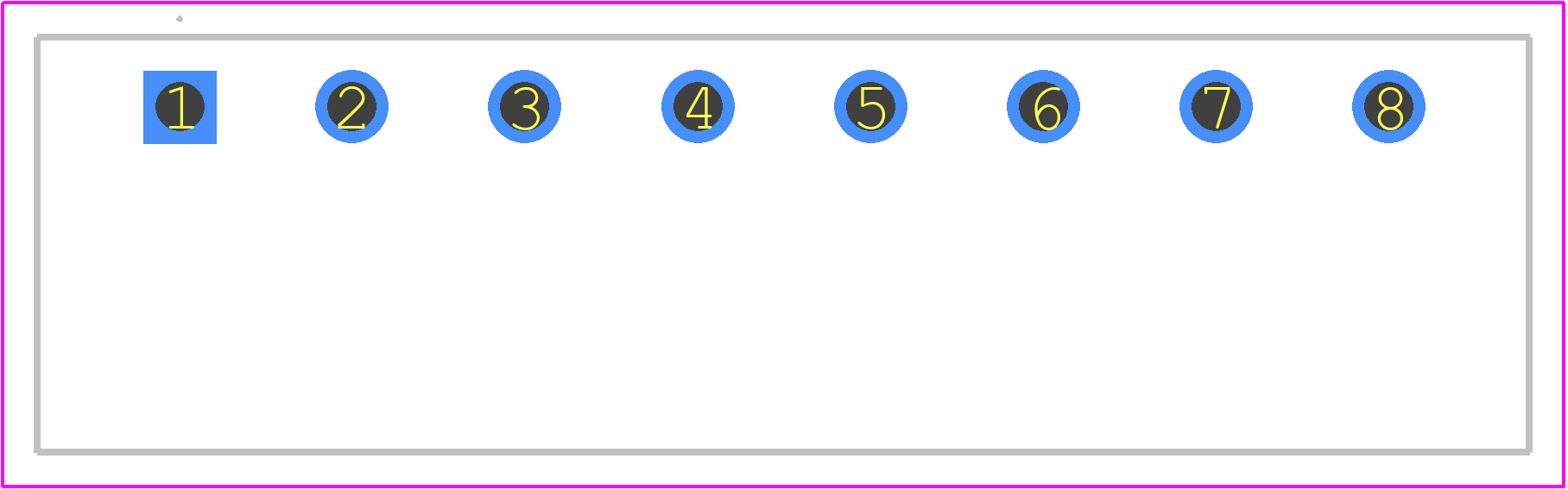

1840180000 - Weidmüller PCB footprint - Other - Other - 1840180000
click to zoom
3D Models
1840180000 - Weidmüller - 3D model - Other - 1840180000
click to zoom

1840180000 Details

  • Manufacturer Part Number:

    1840180000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1840180000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1840180000 is designed for DIN rail mounting and meets the DIN EN 50022 standard.
  • The operating temperature range for the 1840180000 is -20°C to +70°C, with a storage temperature range of -40°C to +85°C.
  • No, the 1840180000 is not designed for use in hazardous locations, such as explosive atmospheres or areas with high levels of flammable gases.
  • The maximum wire size that can be used with the screw terminals is 2.5 mm² (AWG 14).
