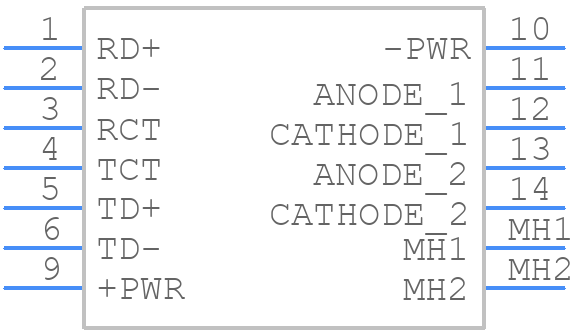

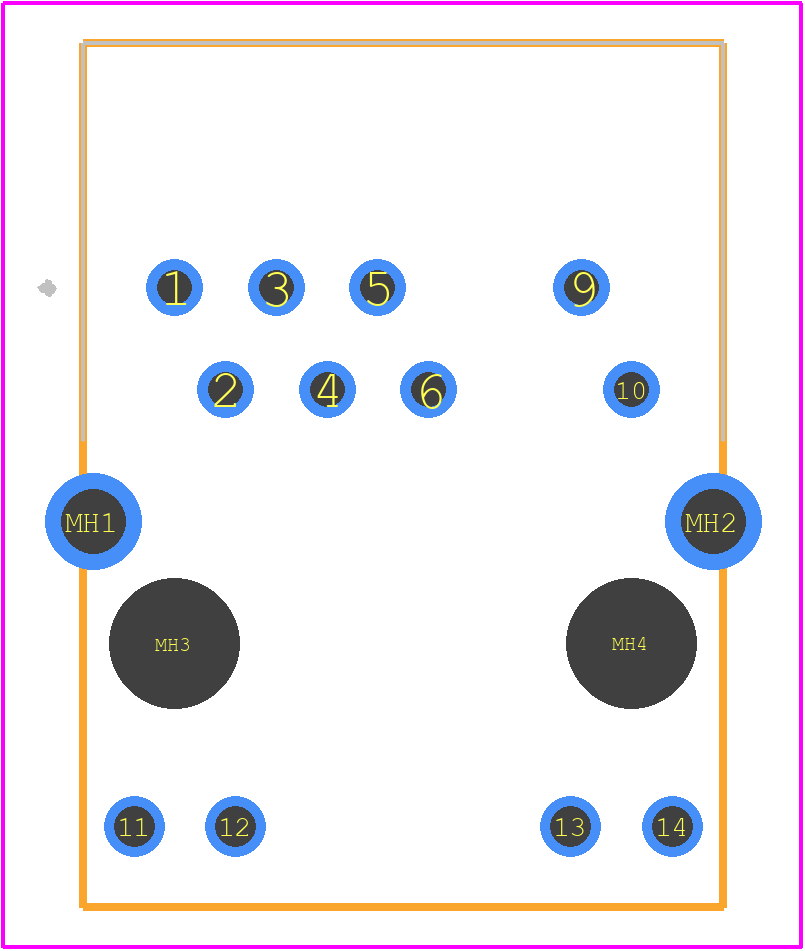

1840469-2 - Bel Magnetic Solutions

1840469-2 Details

• Manufacturer Part Number:

  1840469-2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Bel Fuse

• YTEOL:

  8

• Additional Feature:

  SHIELDED

• Board Mounting Option:

  HOLE 0.128

• Body Breadth:

  0.85 inch

• Body Depth:

  0.65 inch

• Body Length:

  0.63 inch

• Connector Type:

  RJ CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  MAGNETIC RJ45

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  50u inch

• Polarization Key:

  POLARIZED HOUSING

• Reference Standard:

  CUL; UL

• Shell Finish:

  NICKEL

• Shell Material:

  BRASS

• Terminal Length:

  0.14 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  8

• UL Flammability Code:

  94V-0
