1842089 - Phoenix Contact

Description: MDSTBA 2,5/ 4-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 2, number of positions: 4, number of connections: 8, product range: MDSTBA 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector patte

Download 1842089 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1842089 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

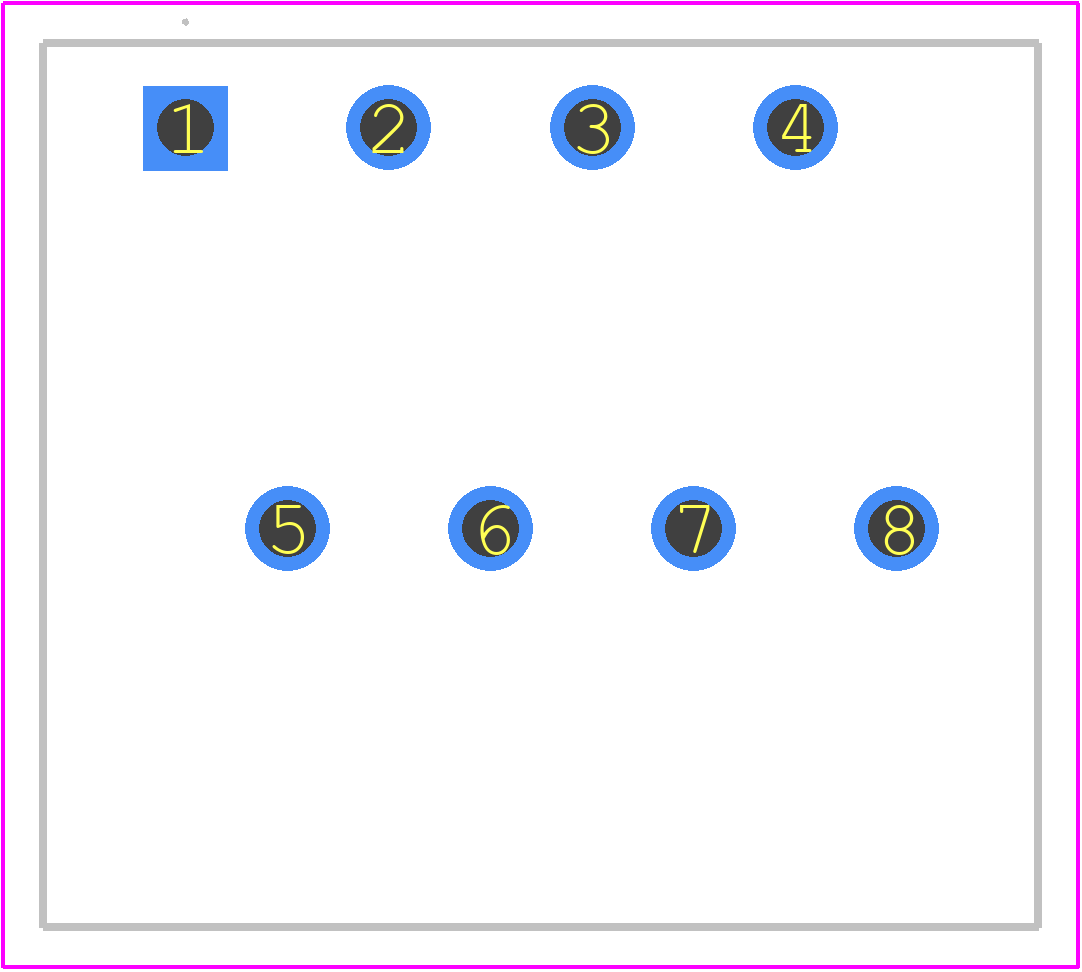

1842089 - Phoenix Contact PCB footprint - Other - Other - 1842089
click to zoom
3D Models
1842089 - Phoenix Contact - 3D model - Other - 1842089
click to zoom

1842089 Details

  • Manufacturer Part Number:

    1842089

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    PLUG IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    10 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1842089 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1842089 connector is designed to withstand high vibrations and is suitable for use in applications with intense mechanical stress, such as in industrial automation or transportation systems.
  • The connector's housing and insulating materials are resistant to many chemicals and cleaning agents, but it's recommended to check the compatibility of specific substances with Phoenix Contact's materials before use.
  • The 1842089 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor or humid environment use.
  • The operating temperature range for the 1842089 connector is -40°C to 125°C, making it suitable for use in a wide range of applications, from industrial automation to automotive systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1842089 Overview

Use the download button to access the 1842089 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18420, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
