1842445 - Phoenix Contact

Description: MDSTB 2,5/10-GF-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 20, number of rows: 2, number of positions: 10, number of connections: 20, product range: MDSTB 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pa

Download 1842445 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1842445 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

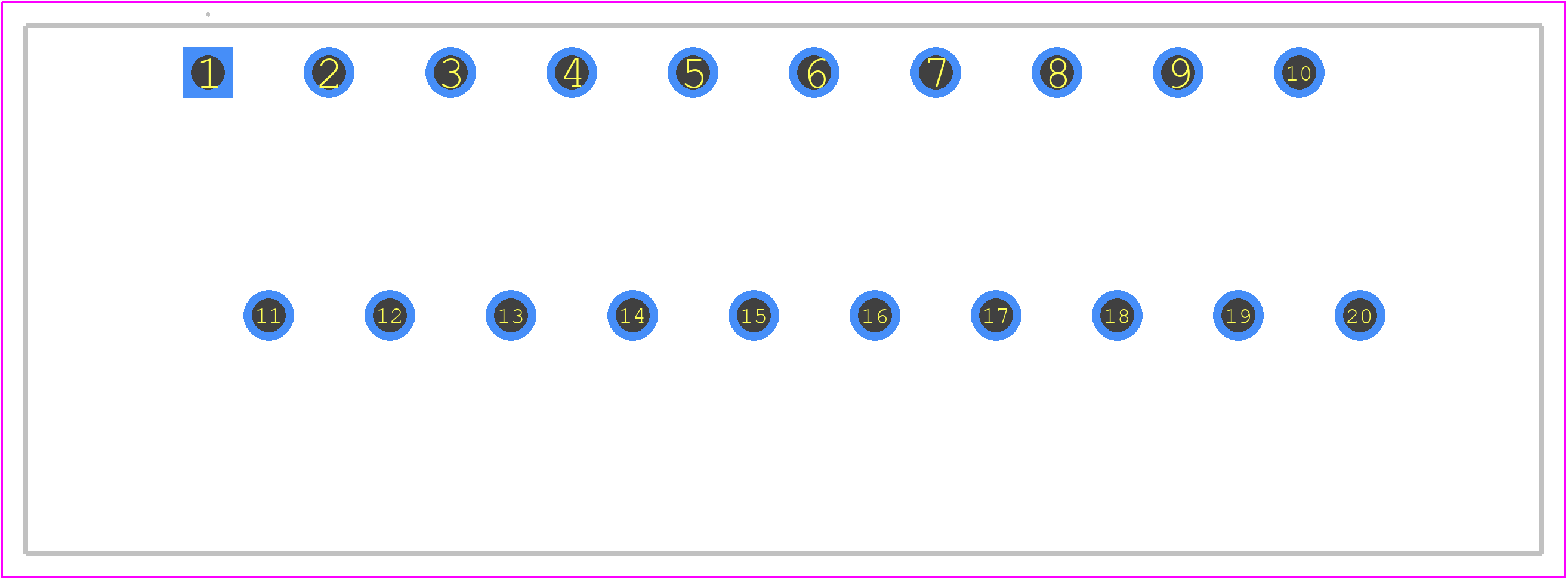

1842445 - Phoenix Contact PCB footprint - Other - Other - 1842445
click to zoom
3D Models
1842445 - Phoenix Contact - 3D model - Other - 1842445
click to zoom

1842445 Details

  • Manufacturer Part Number:

    1842445

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    10 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1842445 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 1842445 is designed to withstand high-vibration environments. It meets the DIN EN 61373 standard for vibration resistance.
  • Yes, the 1842445 is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 1842445 is suitable for use with stranded wire. However, it's recommended to use a wire ferrule to ensure a secure connection.
  • The operating temperature range of the 1842445 is -40°C to 125°C (-40°F to 257°F).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1842445 Overview

Use the download button to access the 1842445 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18424, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
