1842640000 - Weidmüller

Description: PCB connector (board connection), 160 V, 15 A, Pitch in mm: 3.50, Number of poles: 12, THT/THR solder connection, Box

Download 1842640000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1842640000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

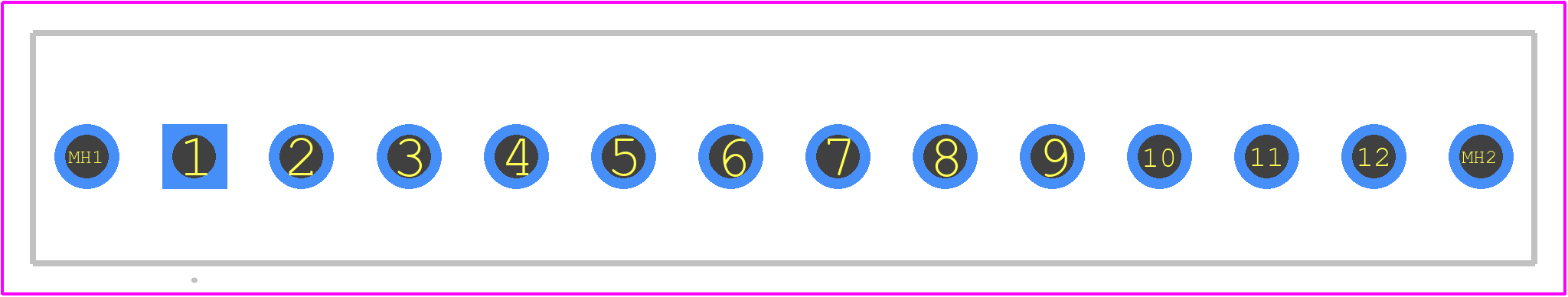

1842640000 - Weidmüller PCB footprint - Other - Other - 1842640000
click to zoom
3D Models
1842640000 - Weidmüller - 3D model - Other - 1842640000
click to zoom

1842640000 Details

  • Manufacturer Part Number:

    1842640000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.87

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    15 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
