1842930000 - Weidmüller

Description: PCB connector (board connection), 160 V, 15 A, Pitch in mm: 3.50, Number of poles: 18, THT/THR solder connection, Box

Download 1842930000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1842930000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

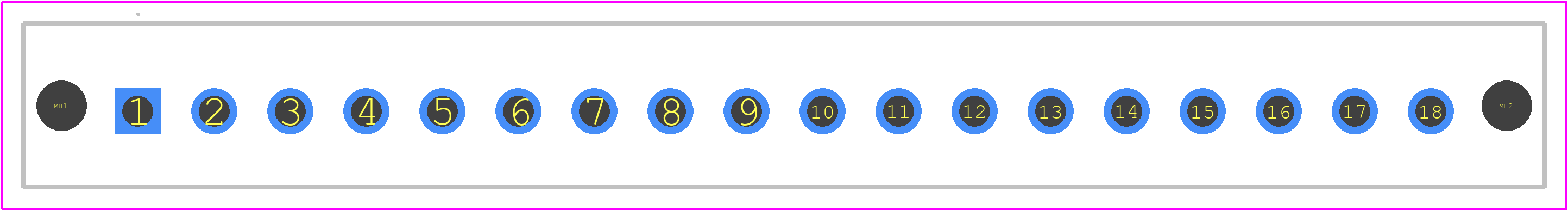

1842930000 - Weidmüller PCB footprint - Other - Other - 1842930000
click to zoom
3D Models
1842930000 - Weidmüller - 3D model - Other - 1842930000
click to zoom

1842930000 Details

  • Manufacturer Part Number:

    1842930000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.77

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    18

  • Rated Current:

    15 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1842930000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1842930000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1842930000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified by Weidmüller.
  • The 1842930000 is not designed for use in hazardous locations. It is intended for general-purpose industrial applications only.
  • The 1842930000 has an IP20 rating, providing protection against solid objects larger than 12 mm and no protection against water.
