1842979 - Phoenix Contact

Description: MCD 1,5/ 8-G1F-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: MCD 1,5/..-G1F, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern a

Download 1842979 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1842979 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

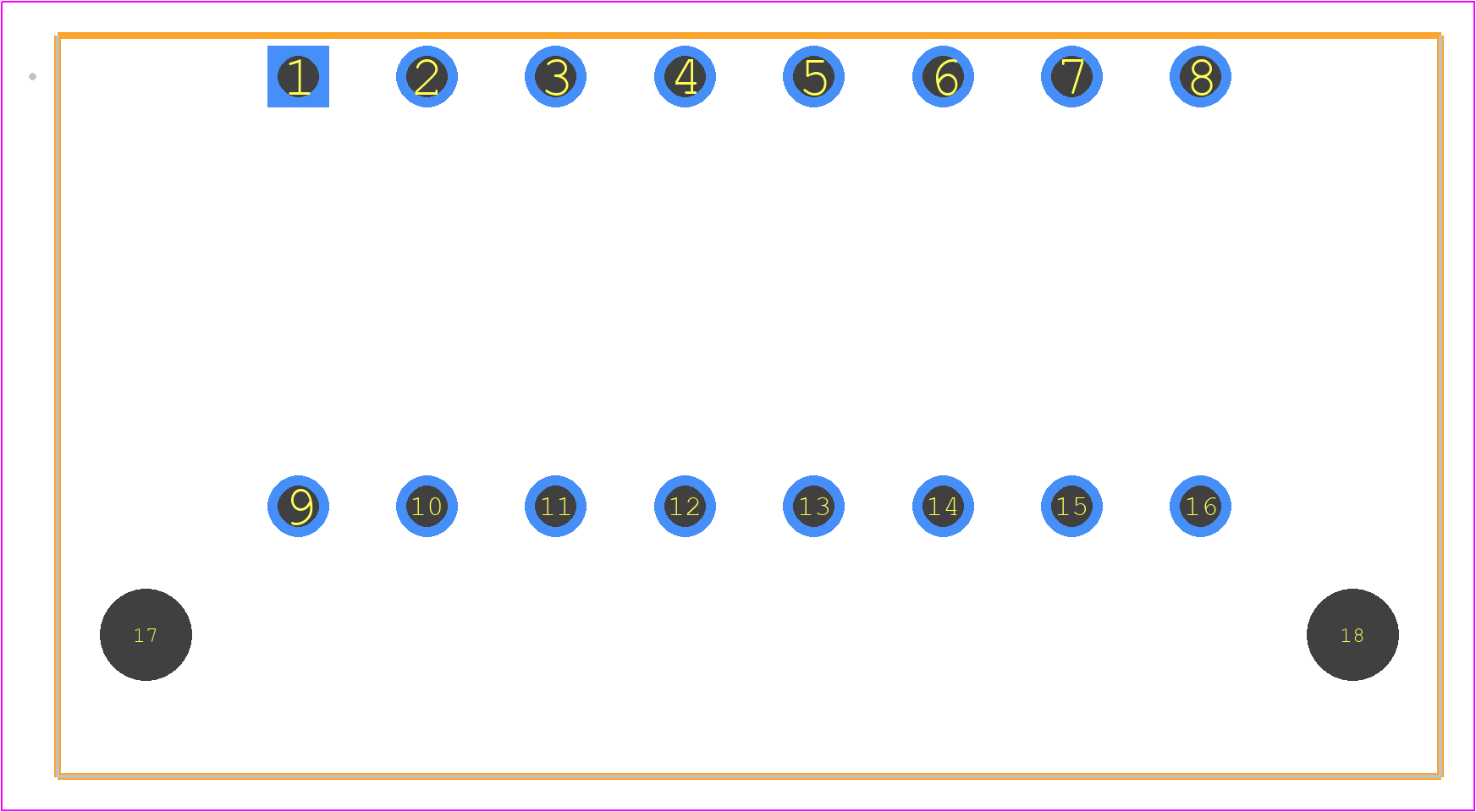

1842979 - Phoenix Contact PCB footprint - Other - Other - 1842979
click to zoom
3D Models
1842979 - Phoenix Contact - 3D model - Other - 1842979
click to zoom

1842979 Details

  • Manufacturer Part Number:

    1842979

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CCA; CSA; CUL; EAC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1842979 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1842979 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1842979 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, allowing for easy integration into existing systems.
  • The maximum current rating for the 1842979 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1842979 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring that it meets the necessary environmental and safety standards.
  • The 1842979 is typically used in industrial automation, machine building, and electrical engineering applications, where reliable and secure connections are required.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1842979 Overview

Use the download button to access the 1842979 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18429, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.

Parts related to 1842979
