1842982 - Phoenix Contact

Description: MCD 1,5/ 9-G1F-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 18, number of rows: 2, number of positions: 9, number of connections: 18, product range: MCD 1,5/..-G1F, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern a

Download 1842982 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1842982 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

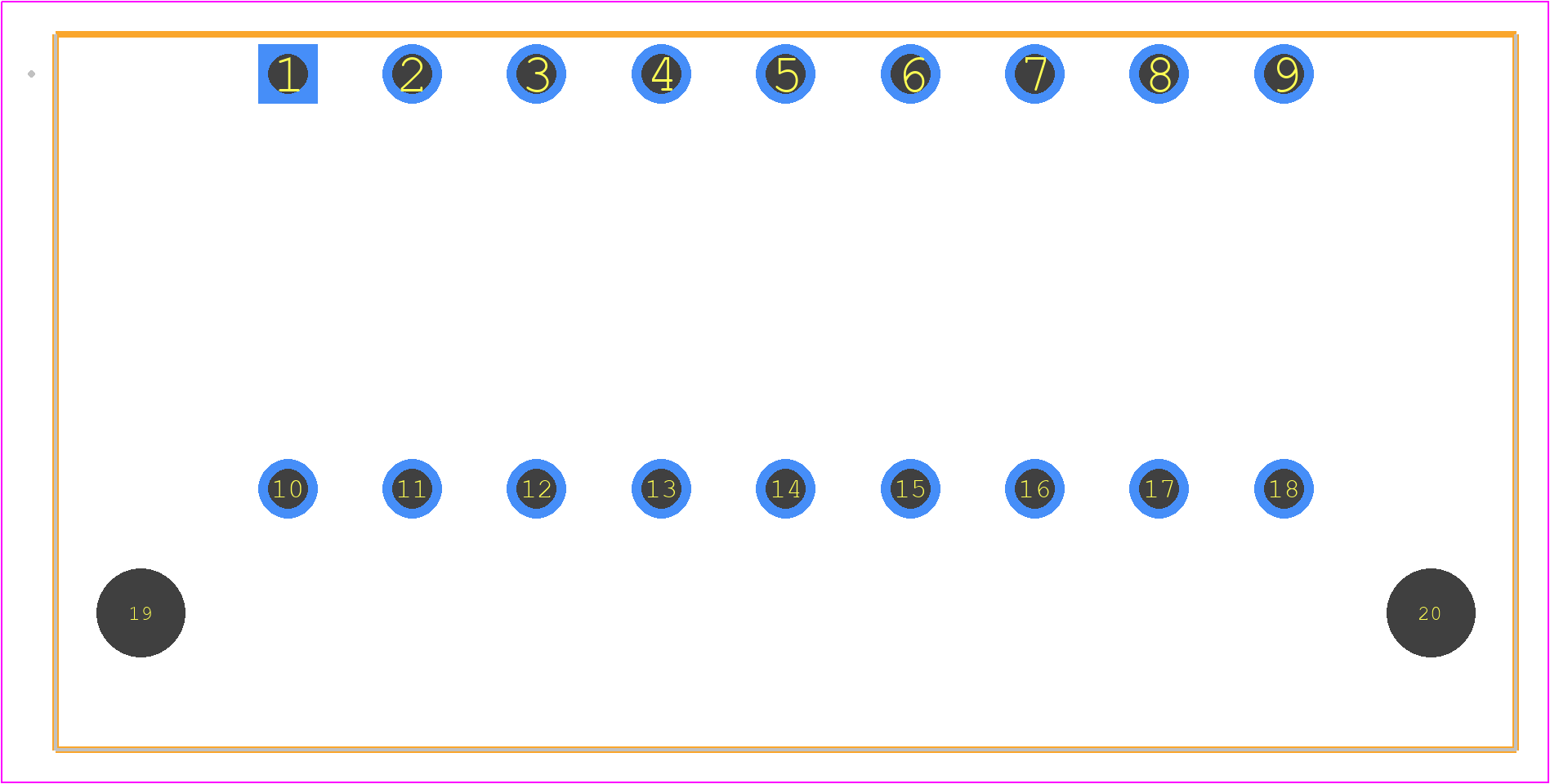

1842982 - Phoenix Contact PCB footprint - Other - Other - 1842982
click to zoom
3D Models
1842982 - Phoenix Contact - 3D model - Other - 1842982
click to zoom

1842982 Details

  • Manufacturer Part Number:

    1842982

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1842982 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1842982 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1842982 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1842982 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1842982 is UL certified, which means it meets the safety standards set by Underwriters Laboratories, a leading independent safety science company.
  • Yes, the 1842982 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and outdoor applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1842982 Overview

Use the download button to access the 1842982 schematic symbol, PCB footprint, and 3D model.
