1843169 - Phoenix Contact

Description: MCD 1,5/11-G1-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 22, number of rows: 2, number of positions: 11, number of connections: 22, product range: MCD 1,5/..-G1, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern al

Download 1843169 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

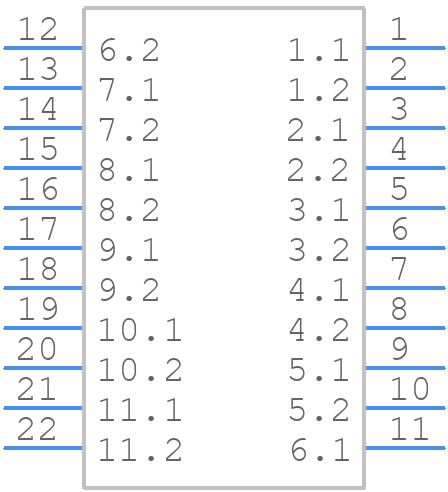

1843169 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

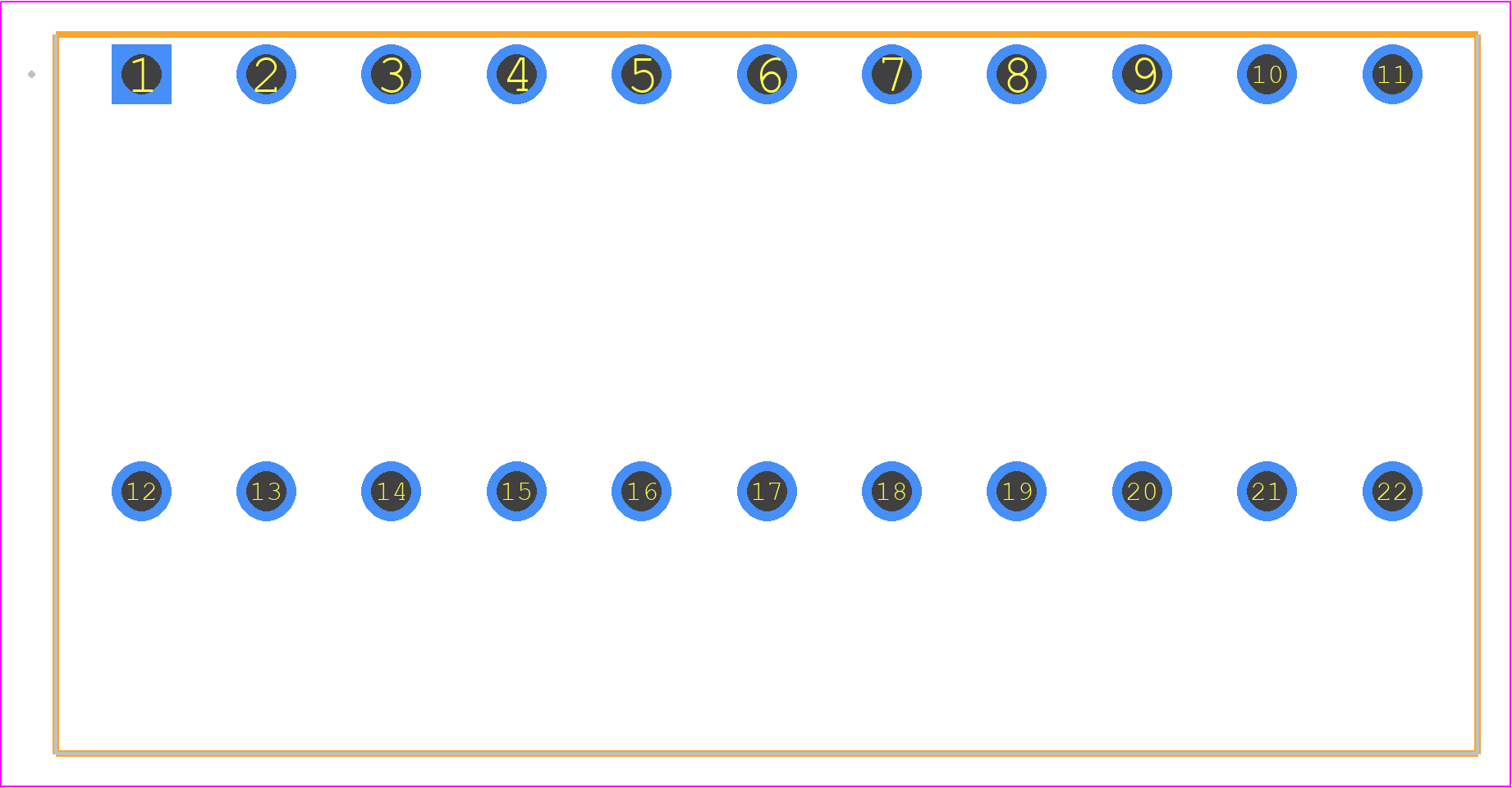

1843169 - Phoenix Contact PCB footprint - Other - Other - 1843169
click to zoom
3D Models
1843169 - Phoenix Contact - 3D model - Other - 1843169
click to zoom

1843169 Details

  • Manufacturer Part Number:

    1843169

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    11

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1843169 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1843169 is -40°C to 125°C, according to Phoenix Contact's documentation.
  • No, the 1843169 is not designed for high-voltage applications. It is rated for a maximum voltage of 250 V AC/DC.
  • The 1843169 has a IP20 rating, which means it is not designed for use in harsh environments. However, Phoenix Contact offers other products with higher IP ratings that may be suitable for such applications.
  • The maximum current rating for the 1843169 is 12 A, according to the datasheet.
  • The 1843169 is designed for use with copper wires. While it may be possible to use it with aluminum wires, Phoenix Contact recommends using copper wires for optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1843169 Overview

Use the download button to access the 1843169 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18431, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
