1843198 - Phoenix Contact

Description: MCD 1,5/14-G1-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 28, number of rows: 2, number of positions: 14, number of connections: 28, product range: MCD 1,5/..-G1, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern al

Download 1843198 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

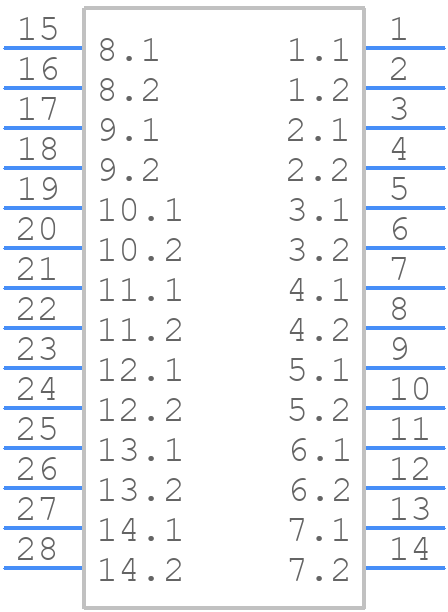

Symbol
1843198 - Phoenix Contact - PCB symbol
click to zoom

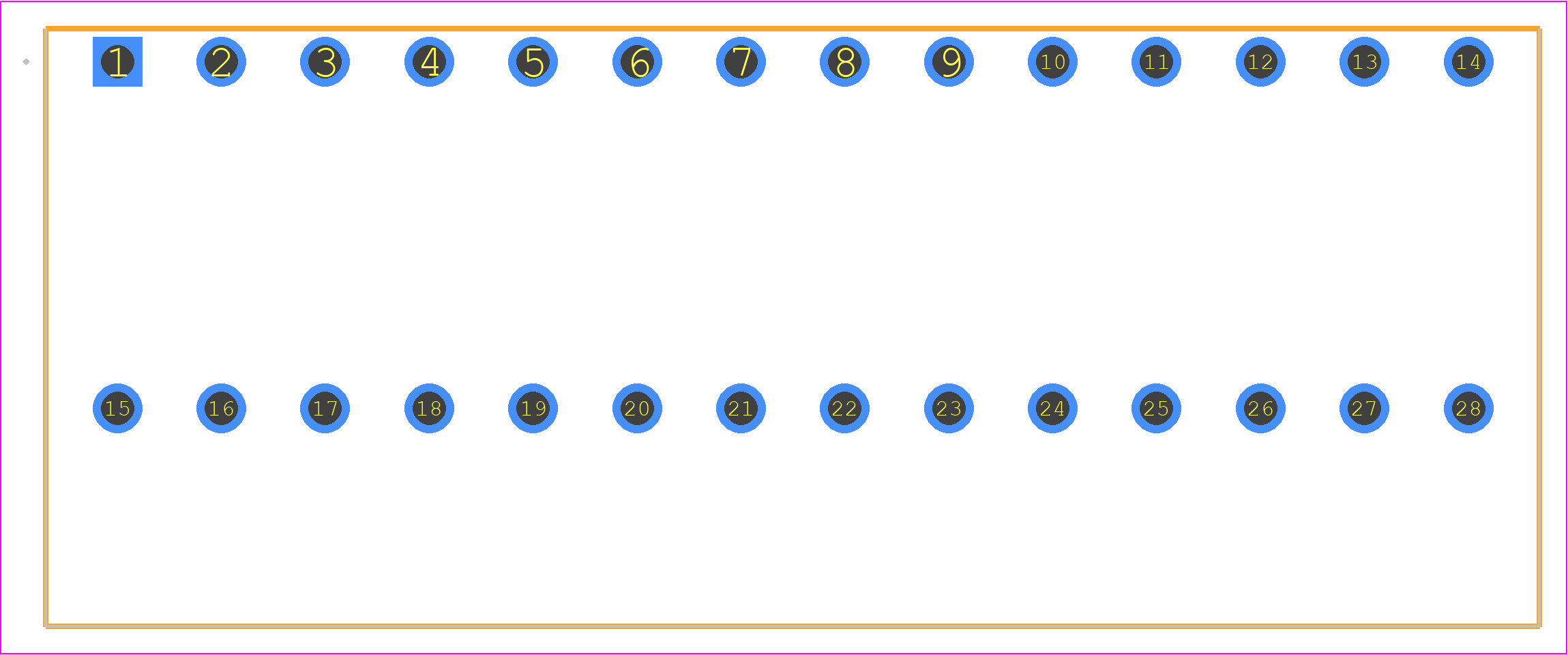

PCB Footprints
1843198 - Phoenix Contact PCB footprint - Other - Other - 1843198
click to zoom
3D Models
1843198 - Phoenix Contact - 3D model - Other - 1843198
click to zoom

1843198 Details

  • Manufacturer Part Number:

    1843198

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    14

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1843198 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1843198 is -40°C to 125°C, according to Phoenix Contact's documentation.
  • No, the 1843198 is not designed for high-voltage applications. It is rated for a maximum voltage of 250 V AC/DC.
  • The 1843198 has a IP20 rating, which means it is not protected against water or moisture. It is recommended to use it in dry environments only.
  • The maximum current rating for the 1843198 is 12 A, according to Phoenix Contact's specifications.
  • Yes, the 1843198 is RoHS and REACH compliant, meeting the European Union's regulations for hazardous substances in electrical and electronic equipment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1843198 Overview

Use the download button to access the 1843198 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18431, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
