1843279 - Phoenix Contact

Description: MCV 1,5/ 7-GF-3,5 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 7, number of rows: 1, number of positions: 7, number of connections: 7, product range: MCV 1,5/..-GF, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignme

Download 1843279 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1843279 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

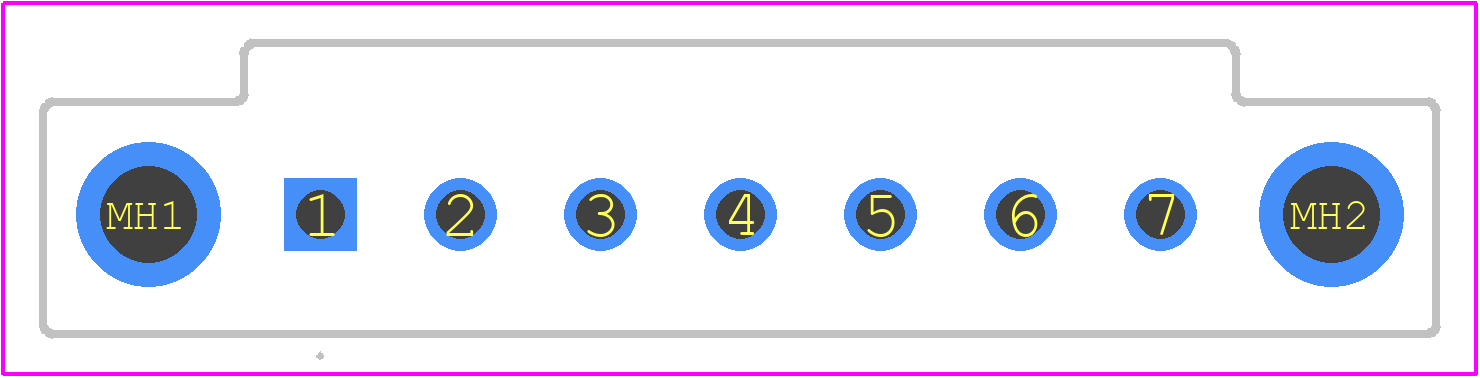

1843279 - Phoenix Contact PCB footprint - Other - Other - 1843279-2
click to zoom
3D Models
1843279 - Phoenix Contact - 3D model - Other - 1843279-2
click to zoom

1843279 Details

  • Manufacturer Part Number:

    1843279

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    STANDARD: UL 94V-0, PBT

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CSA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1843279 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1843279 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The 1843279 connector has a IP20 rating, which means it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP69K.
  • It's not recommended to use the 1843279 connector with aluminum wires, as the connector is designed for copper wires. Using aluminum wires may lead to corrosion and reduced connector performance.
  • The 1843279 connector has a maximum operating temperature of 125°C (257°F) according to the datasheet. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific temperature requirements of your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1843279 Overview

Use the download button to access the 1843279 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18432, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
