1843868 - Phoenix Contact

Description: MC 1,5/ 9-GF-3,5 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: MC 1,5/..-GF, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignment

Download 1843868 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1843868 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

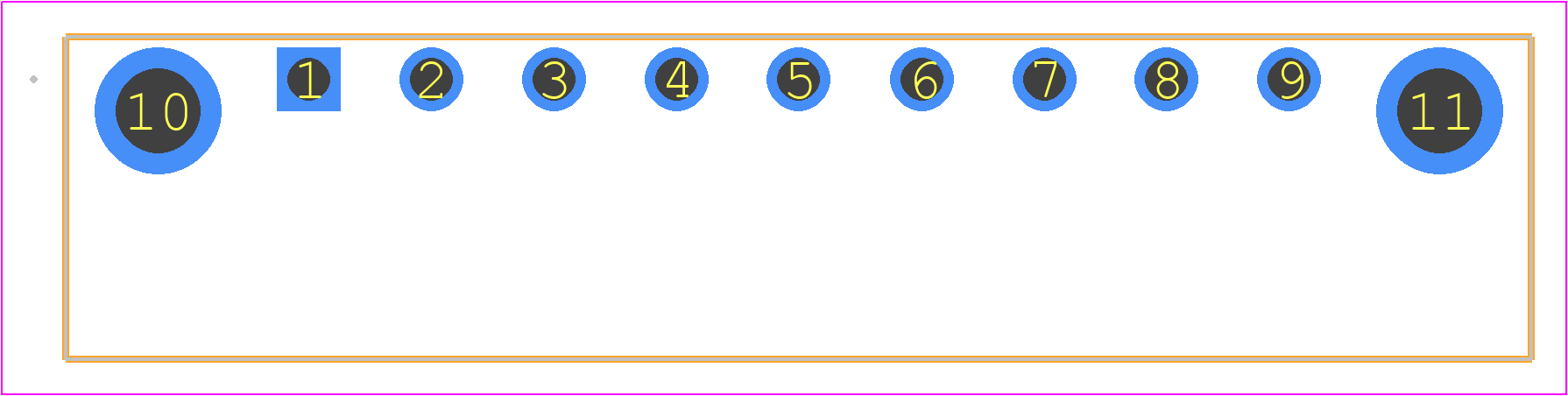

1843868 - Phoenix Contact PCB footprint - Other - Other - 1843868
click to zoom
3D Models
1843868 - Phoenix Contact - 3D model - Other - 1843868
click to zoom

1843868 Details

  • Manufacturer Part Number:

    1843868

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    PBT, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1843868 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1843868 is -40°C to 125°C, according to Phoenix Contact's documentation.
  • The 1843868 is designed for low-voltage applications up to 250 V AC/DC. It's not suitable for high-voltage applications above 250 V.
  • While the 1843868 is designed to be robust, it's not specifically rated for use in harsh environments. Phoenix Contact recommends using their specialized products for such applications, such as those with IP67 or IP69K ratings.
  • The maximum current rating for the 1843868 is 12 A, according to the datasheet. However, it's essential to consider the specific application and ensure the device is used within its rated specifications.
  • Yes, the 1843868 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the necessary EU directives for environmental sustainability.
