1843884 - Phoenix Contact

Description: MC 1,5/11-GF-3,5 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 11, number of rows: 1, number of positions: 11, number of connections: 11, product range: MC 1,5/..-GF, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignm

Download 1843884 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1843884 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

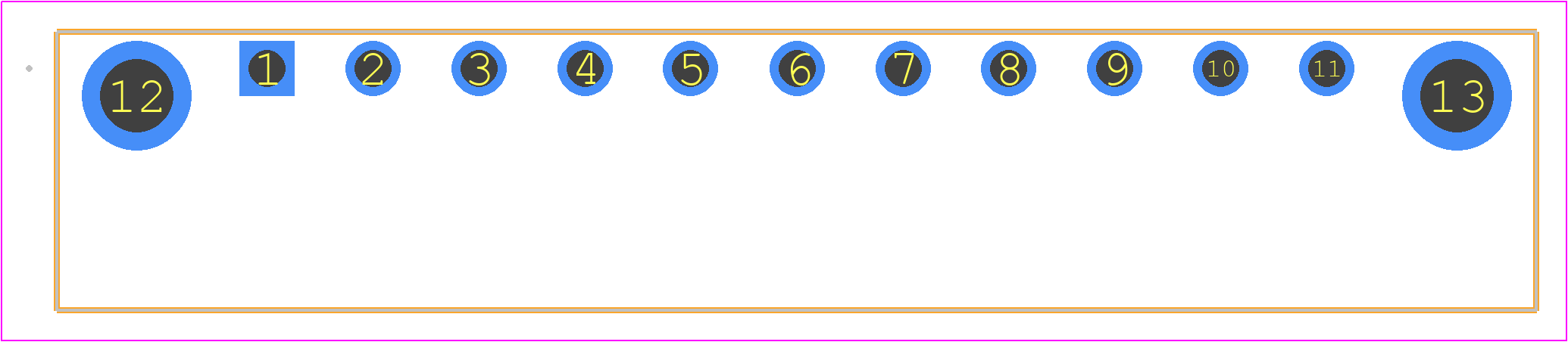

1843884 - Phoenix Contact PCB footprint - Other - Other - 1843884
click to zoom
3D Models
1843884 - Phoenix Contact - 3D model - Other - 1843884
click to zoom

1843884 Details

  • Manufacturer Part Number:

    1843884

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, UL 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    11

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1843884 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1843884 is -40°C to 125°C.
  • Yes, the 1843884 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • The 1843884 is not certified for use in hazardous locations. If you need a product for hazardous locations, you should consider a different product or consult with a Phoenix Contact representative.
  • The maximum wire size that can be connected to the 1843884 is 2.5 mm² (AWG 14).
  • Yes, the 1843884 is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.
