1843936 - Phoenix Contact

Description: MC 1,5/16-GF-3,5 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 1, number of positions: 16, number of connections: 16, product range: MC 1,5/..-GF, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignm

Download 1843936 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

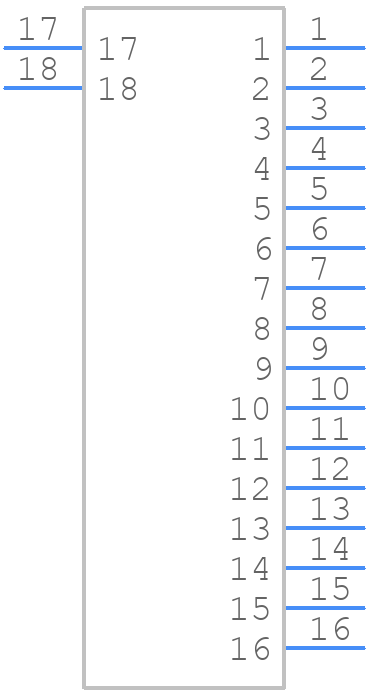

1843936 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

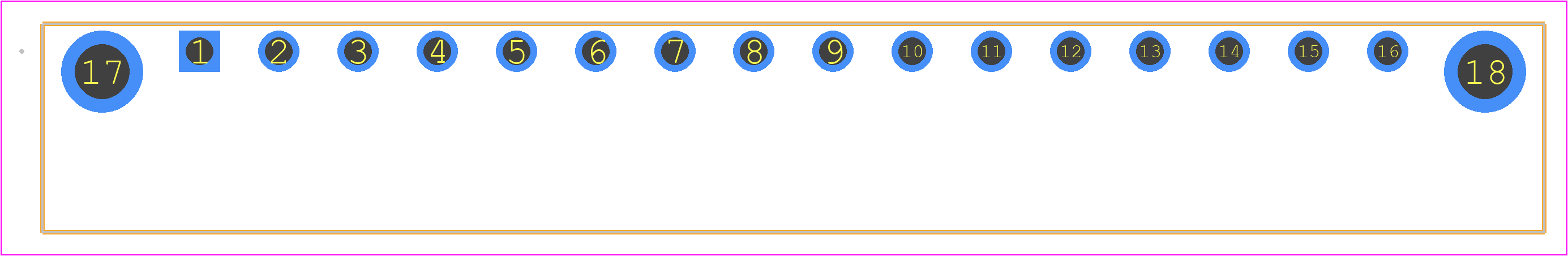

1843936 - Phoenix Contact PCB footprint - Other - Other - 1843936
click to zoom
3D Models
1843936 - Phoenix Contact - 3D model - Other - 1843936
click to zoom

1843936 Details

  • Manufacturer Part Number:

    1843936

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, UL 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1843936 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 lbf·in to 7.1 lbf·in).
  • Yes, the 1843936 connector is designed to withstand high-vibration environments, making it suitable for industrial and transportation applications.
  • The connector's housing and insulators are resistant to many chemicals and cleaning agents, including oils, fuels, and common cleaning solvents. However, it's recommended to check the specific chemical resistance before use.
  • The 1843936 connector has an IP67 rating, making it suitable for outdoor and wet environments. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • The operating temperature range for the 1843936 connector is -40°C to 125°C (-40°F to 257°F).
