1844281 - Phoenix Contact

Description: MC 1,5/ 9-G-3,5 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: MC 1,5/..-G, pitch: 3.5 mm, screw head form: L Slotted, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin c

Download 1844281 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1844281 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

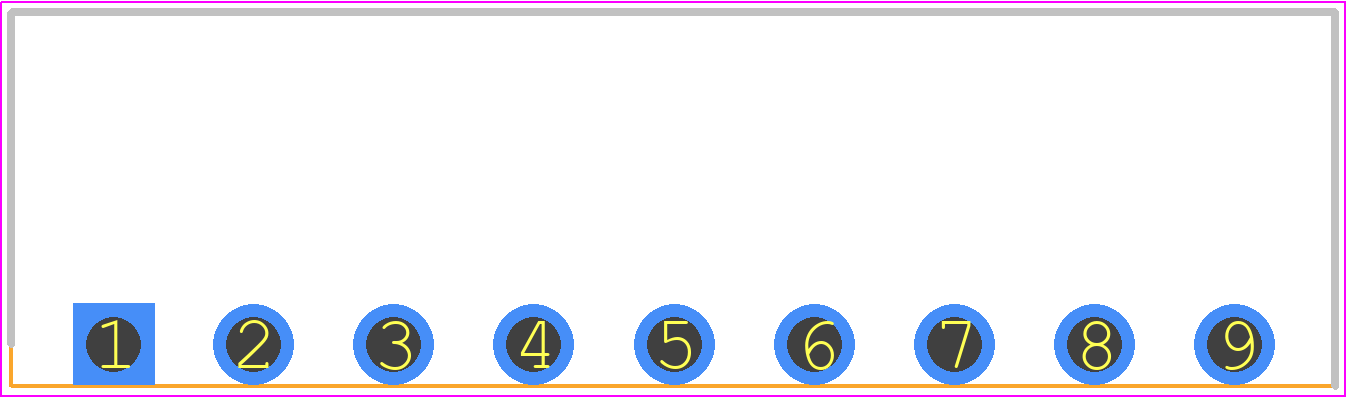

1844281 - Phoenix Contact PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 1844281
click to zoom
3D Models
1844281 - Phoenix Contact - 3D model - Header, Shrouded - Right Angle PTH Box - 1844281
click to zoom

1844281 Details

  • Manufacturer Part Number:

    1844281

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    PBT, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1844281 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting and to avoid damage to the PCB or the connector.
  • Yes, the 1844281 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure fastening to the PCB to maintain the connector's integrity in high-vibration environments.
  • The 1844281 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidities up to 95%. However, it's essential to consult the specific application requirements and environmental conditions to ensure the connector's reliability and performance.
  • Yes, the 1844281 connector is designed to be compatible with other Phoenix Contact products and accessories, such as cables, adapters, and connectors. However, it's essential to consult the specific product documentation and compatibility charts to ensure seamless integration.
  • The maximum current rating for the 1844281 connector is 12 A per contact. However, it's crucial to consult the specific application requirements and ensure that the connector is used within its rated specifications to avoid overheating or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1844281 Overview

Use the download button to access the 1844281 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18442, or try a keyword search, such as Terminals and Terminal Blocks
