1844317 - Phoenix Contact

Description: MC 1,5/12-G-3,5 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: MC 1,5/..-G, pitch: 3.5 mm, screw head form: L Slotted, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pi

Download 1844317 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1844317 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

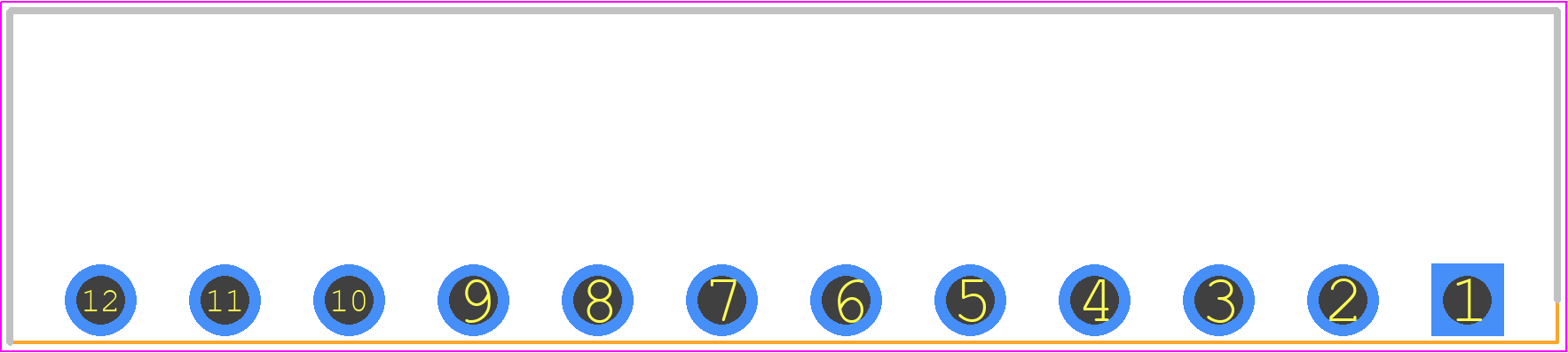

1844317 - Phoenix Contact PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 1844317
click to zoom
3D Models
1844317 - Phoenix Contact - 3D model - Header, Shrouded - Right Angle PTH Box - 1844317
click to zoom

1844317 Details

  • Manufacturer Part Number:

    1844317

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1844317 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact manual.
  • Yes, the 1844317 connector is designed to withstand vibrations up to 10 g according to IEC 61373, making it suitable for high-vibration applications.
  • The 1844317 connector is designed to be compatible with other manufacturers' connectors that meet the IEC 61076-2-101 standard, but compatibility should be verified before use.
  • The 1844317 connector is rated for operation in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of environments.
  • The 1844317 connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for use in humid or wet environments.
