1844743 - Phoenix Contact

1844743 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector to the PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and Phoenix Contact's application notes for precise guidance.
• Can I use this connector in high-vibration environments?
  Yes, the 1844743 connector is designed to withstand vibrations and shocks according to IEC 61373 Category 1, Class 1. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
• Is the connector suitable for use in humid or wet environments?
  The 1844743 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
• Can I use this connector for high-current applications?
  The 1844743 connector is rated for 12 A per pin, but it's essential to consider the PCB design, wire gauge, and overall system architecture to ensure safe and reliable operation. Consult Phoenix Contact's application notes and relevant industry standards for guidance.

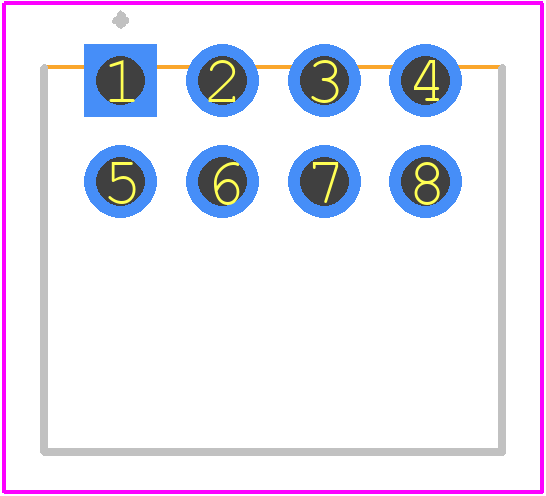

• Are there any specific PCB layout considerations for this connector?
  Yes, Phoenix Contact provides guidelines for PCB layout and footprint design in their documentation. It's crucial to follow these guidelines to ensure proper connector seating, soldering, and reliability.
