1844769 - Phoenix Contact

Description: DMC 0,5/ 6-G1-2,54 P20THR R44 - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 12, number of rows: 2, number of positions: 6, number of connections: 12, product range: DMC 0,5/..-G1-THR, pitch: 2.54 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC

Download 1844769 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1844769 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

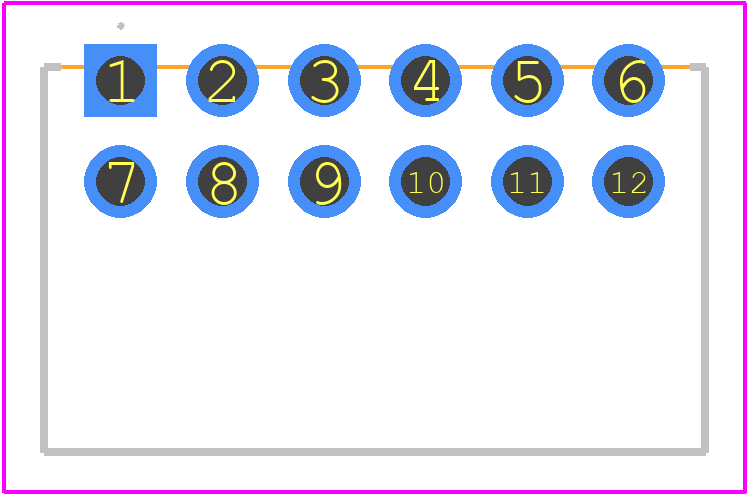

1844769 - Phoenix Contact PCB footprint - Other - Other - 1844769-2
click to zoom
3D Models
1844769 - Phoenix Contact - 3D model - Other - 1844769-2
click to zoom

1844769 Details

  • Manufacturer Part Number:

    1844769

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    6

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1844769 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's always best to consult the specific panel manufacturer's recommendations.
  • Yes, the 1844769 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's essential to ensure proper mounting and secure wiring to prevent damage.
  • The 1844769 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's crucial to ensure proper sealing and protection of the connector and wiring.
  • While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to stick to the specified wire gauge range to ensure optimal performance.
  • To ensure proper grounding, make sure to connect the grounding pin to a suitable grounding point on the panel or device. Consult the panel or device manufacturer's recommendations for grounding.
