1844811 - Phoenix Contact

Description: DMC 0,5/11-G1-2,54 P20THR R56 - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 22, number of rows: 2, number of positions: 11, number of connections: 22, product range: DMC 0,5/..-G1-THR, pitch: 2.54 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFM

Download 1844811 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

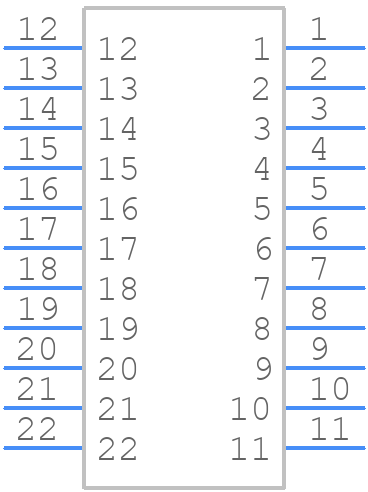

1844811 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

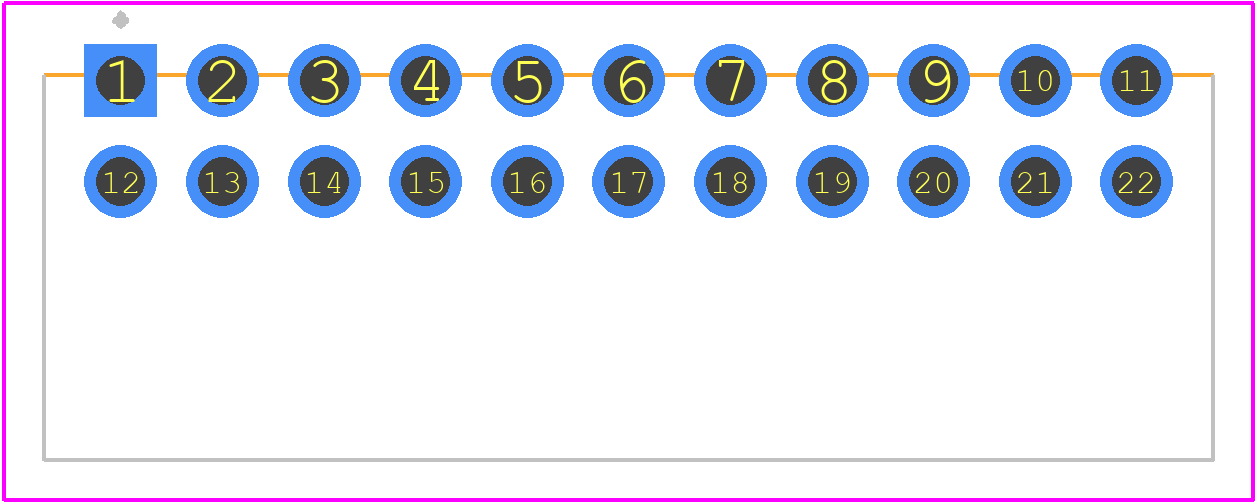

1844811 - Phoenix Contact PCB footprint - Other - Other - 1844811
click to zoom
3D Models
1844811 - Phoenix Contact - 3D model - Other - 1844811
click to zoom

1844811 Details

  • Manufacturer Part Number:

    1844811

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    22

  • Rated Current:

    6 A

  • Rated Voltage:

    32 V

  • Safety Approval:

    CB;CUL;EAC;IECEE;UL;VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

1844811 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the Phoenix Contact torque guide for specific recommendations.
  • Yes, the 1844811 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent loosening or damage.
  • The 1844811 connector has a IP67 rating, making it suitable for outdoor use and exposure to dust and water. However, it's essential to ensure proper sealing and protection of the connector and cables to maintain the IP rating.
  • The 1844811 connector is designed for use with cables of specific sizes and types. It's essential to consult the Phoenix Contact cable guide to ensure compatibility and proper termination.
  • The 1844811 connector has an operating temperature range of -40°C to +125°C. However, it's essential to consider the temperature rating of the cables and other components in the system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1844811 Overview

Use the download button to access the 1844811 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18448, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.

Parts related to 1844811
