1844866 - Phoenix Contact

Description: DMC 0,5/16-G1-2,54 P20THR R72 - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 32, number of rows: 2, number of positions: 16, number of connections: 32, product range: DMC 0,5/..-G1-THR, pitch: 2.54 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFM

Download 1844866 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

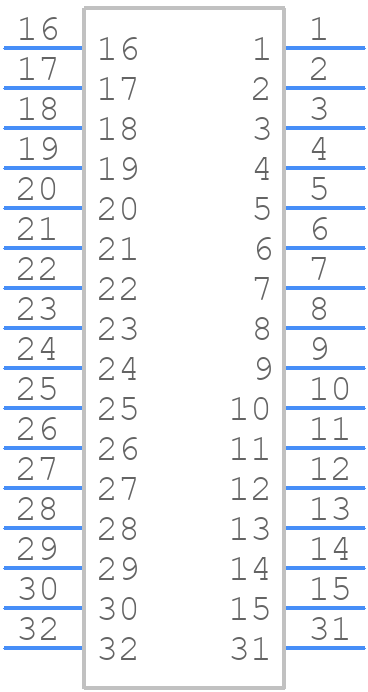

1844866 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

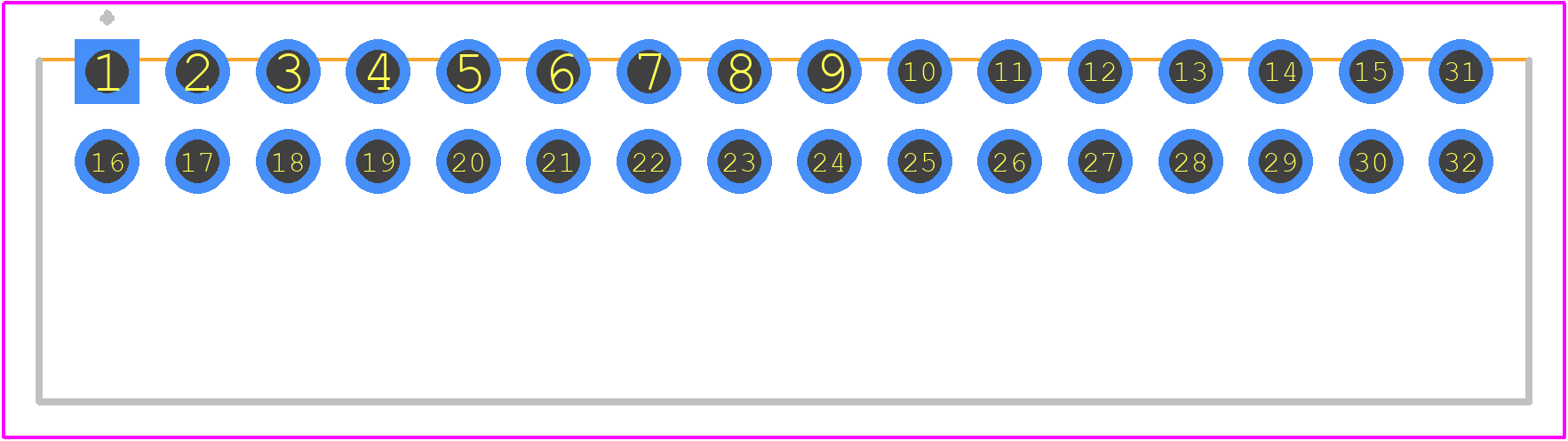

1844866 - Phoenix Contact PCB footprint - Other - Other - 1844866
click to zoom
3D Models
1844866 - Phoenix Contact - 3D model - Other - 1844866
click to zoom

1844866 Details

  • Manufacturer Part Number:

    1844866

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1844866 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1844866 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • Use a suitable contact lubricant, such as Phoenix Contact's Contact Lubricant 920 011, and follow the recommended assembly and crimping procedures to ensure reliable connections up to 125°C.
  • While it's technically possible, using a different wire gauge may affect the connector's performance and reliability. It's recommended to use the specified wire gauge range (0.5 mm² to 1.5 mm²) for optimal results.
  • The 1844866 connector has an IP20 rating, providing protection against solid objects larger than 12.5 mm, but not against water or moisture.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1844866 Overview

Use the download button to access the 1844866 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18448, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
